Laser beam security systems offer unmatched precision for modern perimeter protection. Proper angle adjustment is crucial for accurate intrusion detection. This article explores key aspects like horizontal and vertical alignment, beam spread, and multi-beam coordination to ensure optimal system performance.

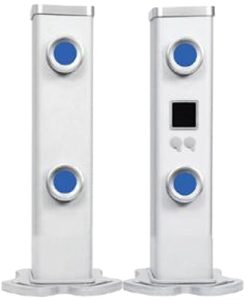

Beam Direction: Horizontal and Vertical Angle
The beam direction is an essential aspect of laser beam security systems. This adaptability is particularly helpful in situations when the fence lines include angles or curves or the perimeter is uneven. There are two key angles that can be adjusted: the horizontal angle and the vertical angle.
Horizontal Angle (Azimuth)
The horizontal angle refers to the side-to-side adjustment range of the laser beam. This is also known as the azimuth angle, which allows for fine-tuning the laser beam’s direction in a horizontal plane. This adjustment is usually in the range of ±90° or more, allowing the beam to be aligned along fences, walls, or perimeters, ensuring that the system covers a wide area.
With this capability, the laser can be directed to cover a broad expanse of the perimeter, such as long fences, gates, and boundary walls. This adaptability is particularly helpful in situations when the fence lines include angles or curves or the perimeter is uneven. The ±90° adjustment provides the ability to direct the beam across the entire area and even around corners if necessary.
Vertical Angle (Tilt)
The vertical angle, or tilt, pertains to the up-and-down adjustment of the laser beam. The typical range of adjustment for the vertical angle is between ±10° to ±30°. This range allows the laser to be tilted upward or downward, ensuring that the beam can be aimed to cover areas on inclines, slopes, or uneven ground.
The tilt adjustment is particularly useful in environments where the ground is not level. For instance, when a laser security system is installed on a hilly or sloped surface, the vertical tilt helps align the beam across the uneven terrain, maintaining consistent coverage. The system can be optimized to detect intruders even in areas that would otherwise be difficult to monitor with a fixed beam.
Both the horizontal and vertical adjustments are essential for ensuring that the laser beams can be properly aligned with the boundaries or physical features of the installation site, providing optimal coverage and performance.
Beam Spread Angle
Another important factor in the operation of a laser beam security system is the beam spread angle. The beam spread angle refers to how the laser beam widens as it travels further from its source. This characteristic is primarily determined by the divergence of the laser beam.
Most laser beam security systems use collimated beams, which are designed to have a very narrow divergence angle. The divergence angle is often less than 1°, typically in the range of 0.5° – 1°. This narrow divergence ensures high precision and long-range transmission, allowing the beam to travel over hundreds of meters while maintaining its tight focus.
A narrow divergence angle is particularly beneficial in security systems because it minimizes the beam’s expansion over distance. This means that the beam remains highly concentrated and focused on the target area, increasing the system’s ability to detect even the smallest movements or intrusions.
The advantage of a narrow divergence angle is most noticeable in long-range laser systems, where precision is critical. For example, a laser with a divergence angle of less than 1° can maintain its accuracy over significant distances, providing a high level of detection capability over large areas without the risk of false triggers due to beam expansion.
Multi-Beam Alignment
Some advanced laser beam security systems utilize multi-beam setups, where multiple infrared beams are used to enhance coverage and improve detection capabilities. These systems may consist of 2, 4, or more beams, with each beam typically arranged in parallel to cover a larger area or to monitor multiple zones at different heights.
While the vertical spacing between these beams is typically fixed, the angle between each beam can be slightly adjusted to optimize the system’s coverage at various heights. This allows the system to monitor a broader range of intrusions, from ground level to higher areas such as windows or rooftops.
The flexibility to adjust the angle between beams can improve coverage in areas that are not easily reached by a single beam. For instance, it is common for systems to use multi-beam configurations to provide coverage from ground level up to 1.5m or more. This helps detect intrusions at different heights, making the system more effective in areas where intruders might attempt to bypass lower beams by climbing or crawling.
Table: Typical Parameters of Laser Beam Security Systems
| Parameter | Typical Value |
| Horizontal Adjustment | ±90° or full 180° rotation |
| Vertical Tilt Adjustment | ±10° to ±30° |
| Beam Divergence Angle | 0.5° – 1° (narrow for accuracy) |
| Beam Coverage Area | Depends on distance & Alignment |
Best Practices for Angle Adjustment
To ensure optimum performance, consider the following practices during angle setup and maintenance:
Use Precision Tools
Always use digital levels, protractors, or specialized laser alignment tools to fine-tune beam angles.
Test After Setup
Once installed, test the beam with controlled interruptions (e.g., walking through the beam path) to verify detection response at multiple distances and angles.
Secure Mounting
Use anti-vibration mounts and high-quality brackets to reduce the risk of misalignment caused by wind, vibration, or tampering.
Plan for Redundancy
In critical zones, install dual beams or crossbeam configurations. This ensures that even if one beam is misaligned, the other can maintain coverage.
Routine Maintenance Checks
Schedule periodic inspections and recalibration. Dust, environmental changes, or mechanical wear can subtly affect beam direction over time.
Angle Adjustment in Multi-Beam Systems
Some laser security systems use multi-beam configurations—either in vertical stacks or horizontal arrays—to increase detection coverage and avoid single-point failure.
In these systems:
- Each beam must be independently angle-adjusted.
- Spacing between beams should match the expected object size (e.g., humans vs. small animals).
- Overlapping beams may be angled inward slightly for redundancy and tight security.
Angle calibration here becomes more complex but is essential for comprehensive coverage.
Conclusion
Angle adjustment is more than just a setup step—it’s key to a laser beam security system’s accuracy, stability, and reliable integration with other technologies.
With the right tools and regular adjustments, security teams can ensure precise alignment and detection. In today’s threat landscape, details like angle adjustment greatly enhance defense.
