Star story series of alarm products
Product Overview
- Gato alarm products are usually used in the security system of homes and commercial places to monitor unauthorized intrusions, fires, gas leaks and other safety issues.
- These systems are realized through a variety of sensors and technologies. With the development of IoT technology and smart home, more and more alarm systems have become intelligent to facilitate management and efficiency.
Wired Alarm System

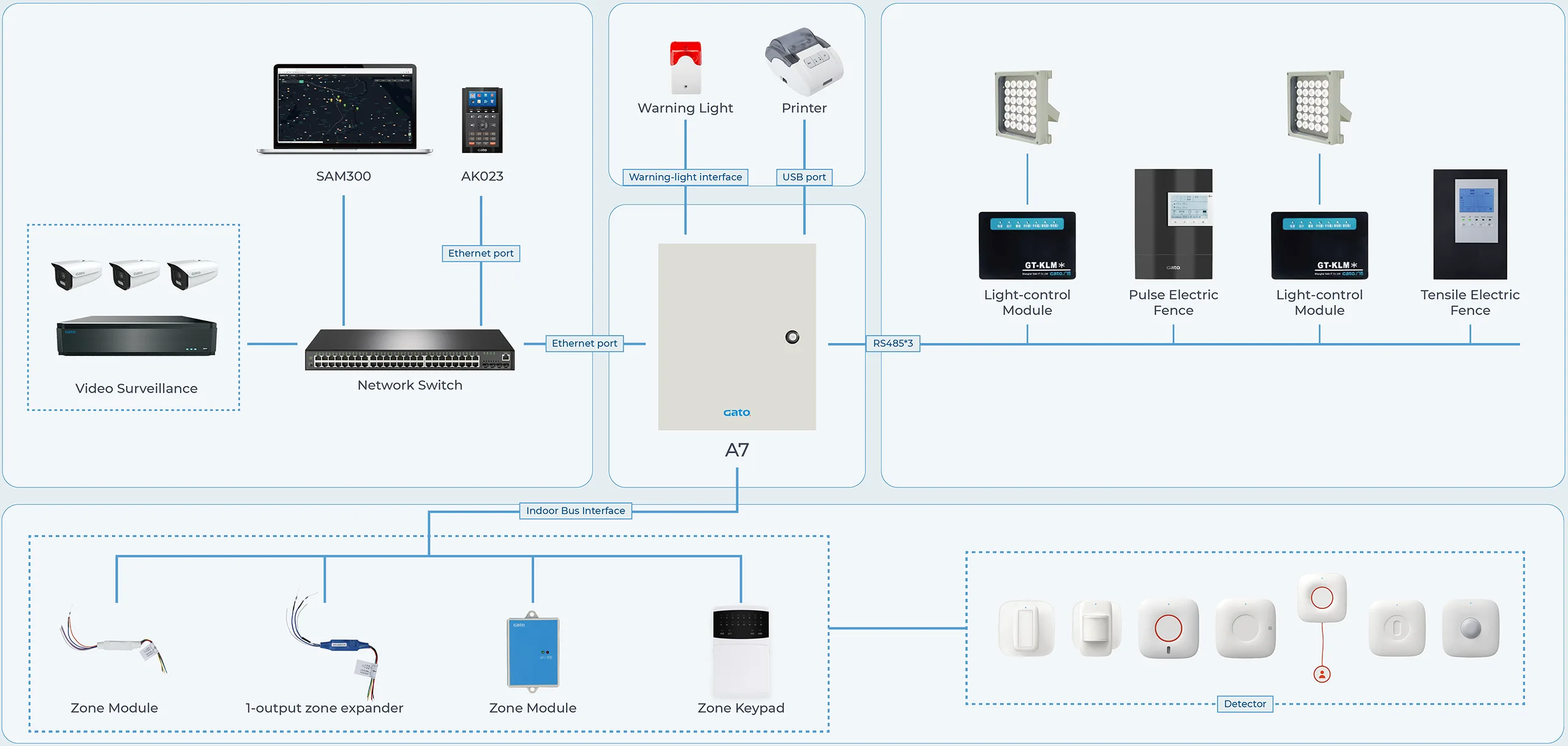

Bus Architecture
Advantages of the Solution:
Easy Construction
The bus can choose the commonly used twisted pair shielded cable, which can be directly pulled from the control center to the front-end host. The hosts can be connected hand in hand, and the construction personnel can complete the task after simple training.
Simple Maintenance
The technician can use the multimeter conduction file to test the continuity of the line, and the voltage on the line can be used to estimate the quality of communication.

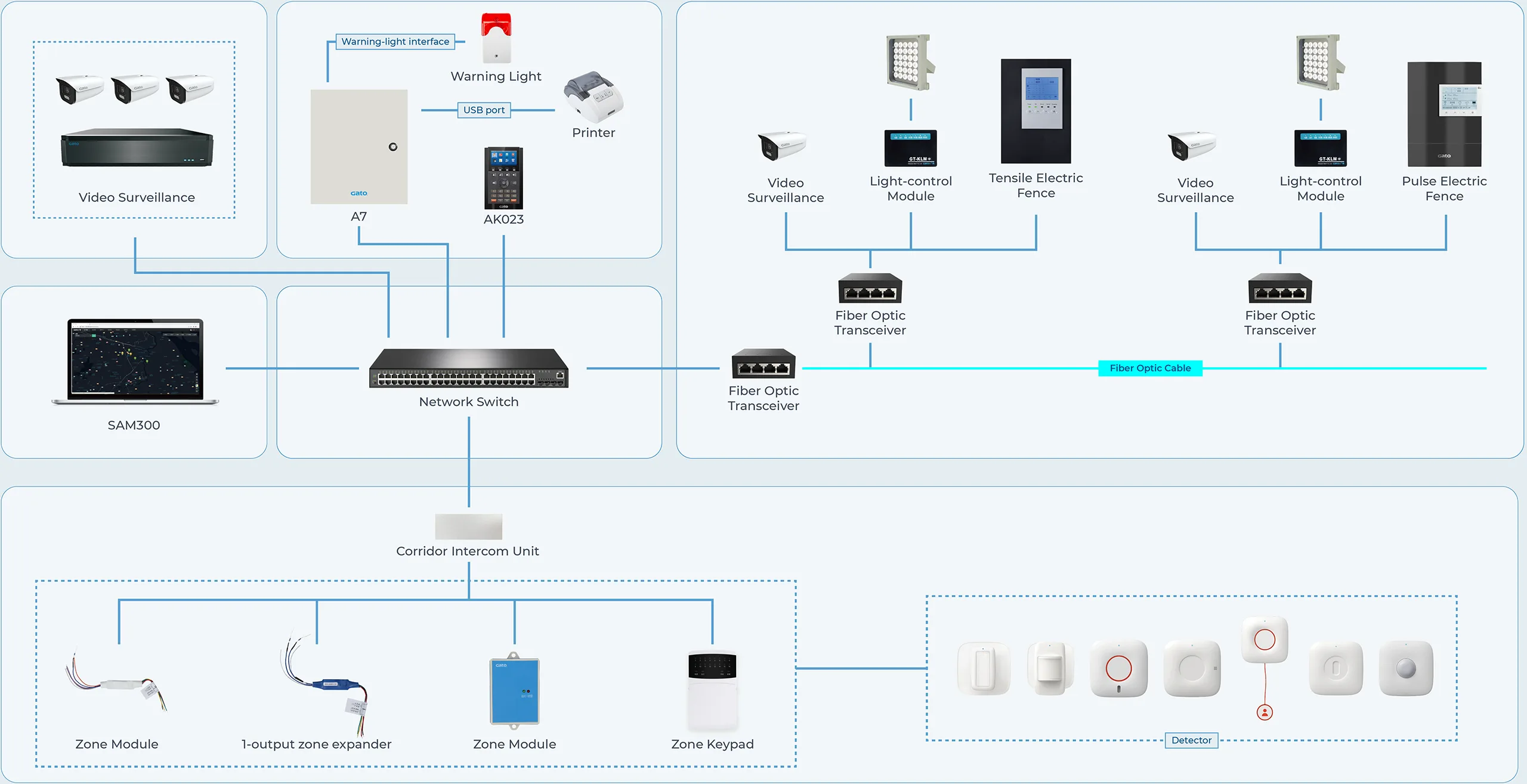

Full Network Architecture
Advantages of the Solution:
Cost Savings
Using the existing network, communication lines are eliminated, and line costs are reduced by at least 40%.
| Solution | RS485 | Full Network |
| Power Cord | Required | Required |
| Signal Line | Required | Not Required |
| 485 Optical Transceiver | Required | Not Required |
| Fiber Optic Transceiver | Required | Required |
| Fiber optic pigtail | Not Required | Not Required |
| Fiber Optic Splicing Kit. | Required | Not Required |
| Optical Cable | Required | Not Required |
| PVC Pipe | Required | Full Network solution |
Reduced Construction Costs
Using the existing network, there is no need to lay additional communication lines or splice optical fibers during construction. Simply insert the network cable into the host and the optical transceiver, and the construction cost is reduced by at least 30%.
Simple Design
The communication network of the network camera and the pulse host can be merged in the solution design, and a multi-channel optical fiber transceiver can be used to access the control center via optical fiber.
System Linkage

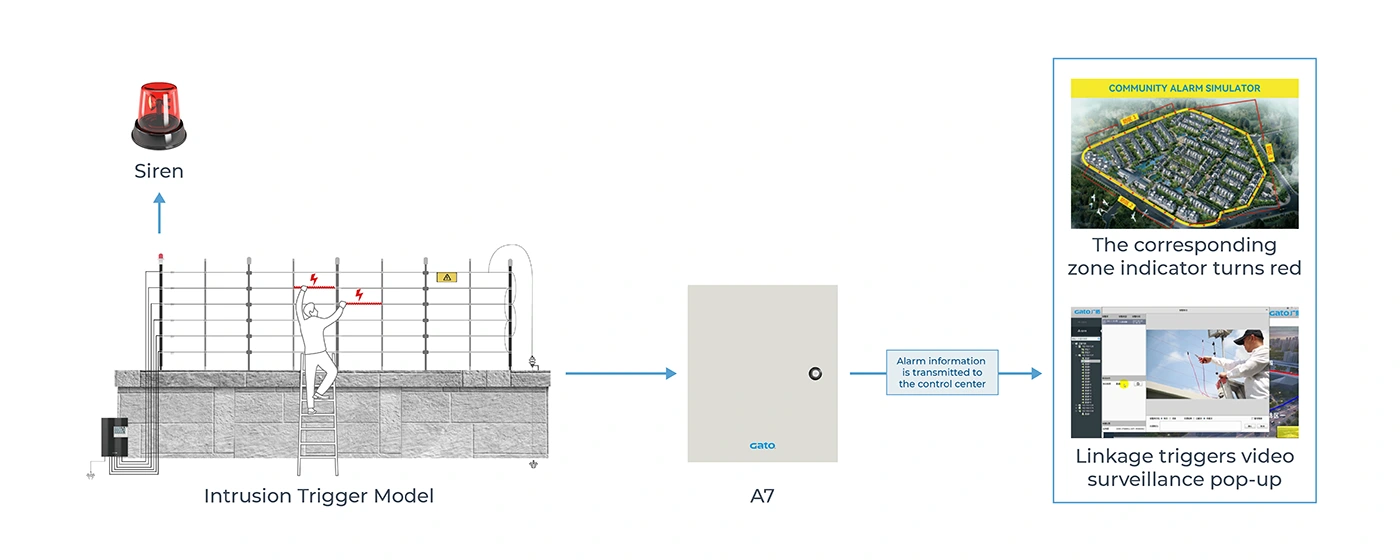

Alarm Linkage
When someone illegally climbs over or destroys the fence, the system will quickly send out an audible and visual alarm signal after sensing it, and immediately transmit the alarm to the control center. The control center receives and processes the alarm signal, and a real-time screen of the intrusion area pops up on the screen. The electronic map shows the precise position of the intrusion area. The on-duty personnel of the control center notify the nearest security personnel to rush to the scene immediately to deal with it.

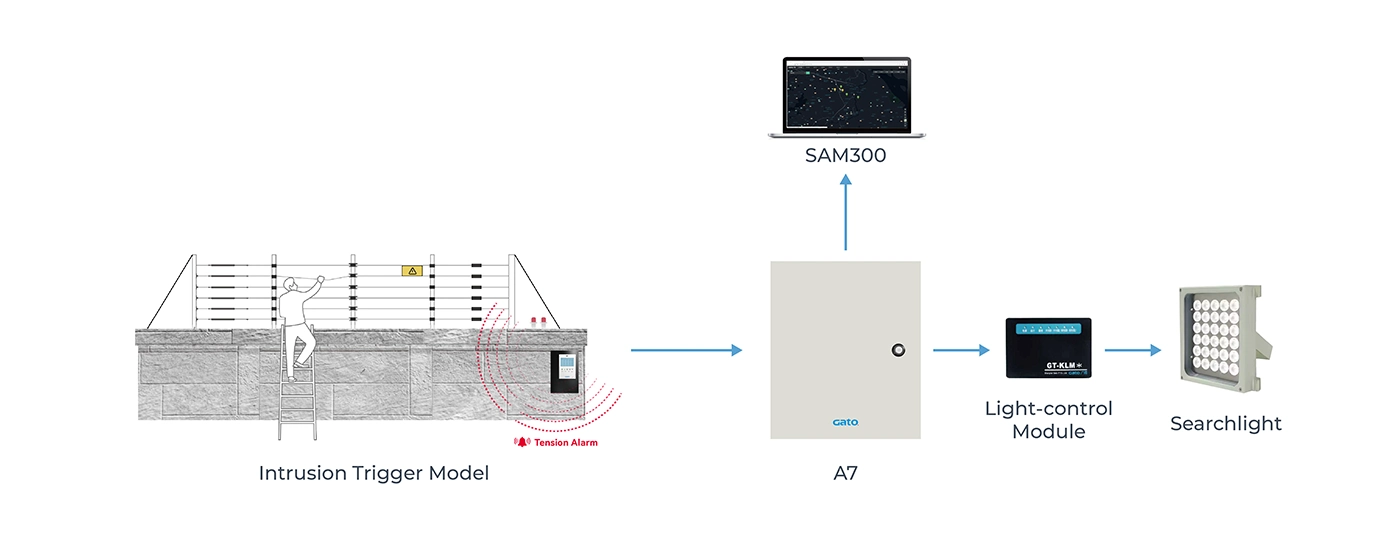

Lighting Linkage
When the defense zone alarms, the corresponding lighting control module can be linked to the action to achieve one or more lighting control. The lighting control system can also be remotely turned on and off through the management platform to provide lighting compensation for the defense zone, which is convenient for staff to inspect and repair at night.
Video Linkage
When an intrusion occurs, the alarm system will sound an alarm, upload the alarm signal to the control center, link the video surveillance system, and send an alarm signal to the on-duty personnel. The on-duty personnel will monitor the alarm area in time and handle the alarm.

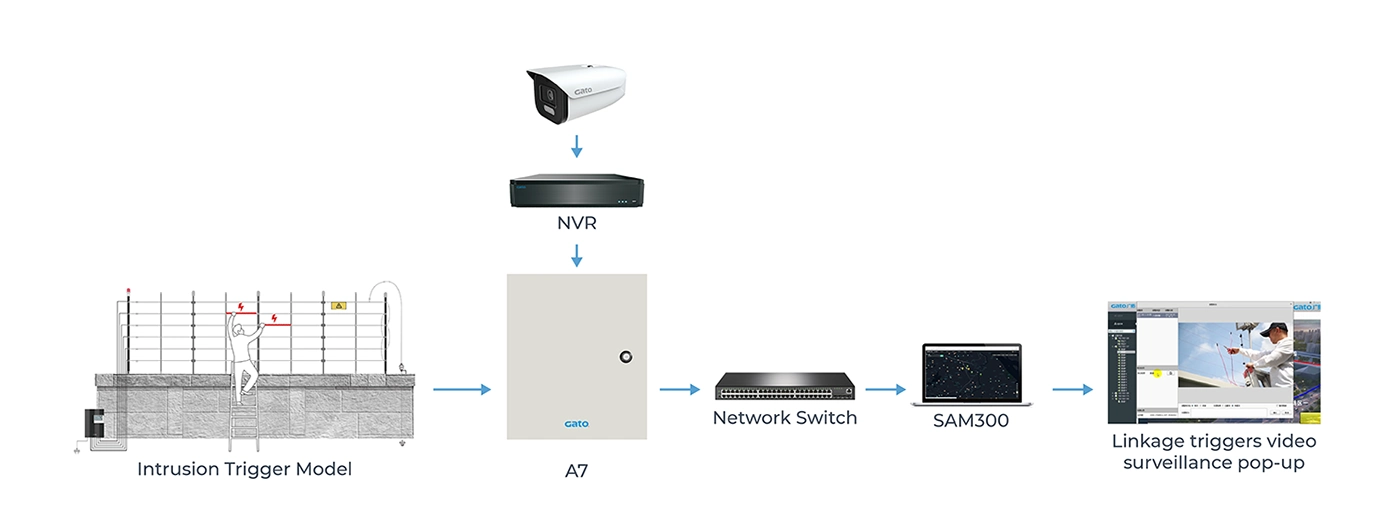

Soft Linkage
The SAM300 integrated management platform is compatible with the video manufacturer API, and the one-to-one correspondence between defense zones and video channels is achieved within the platform.

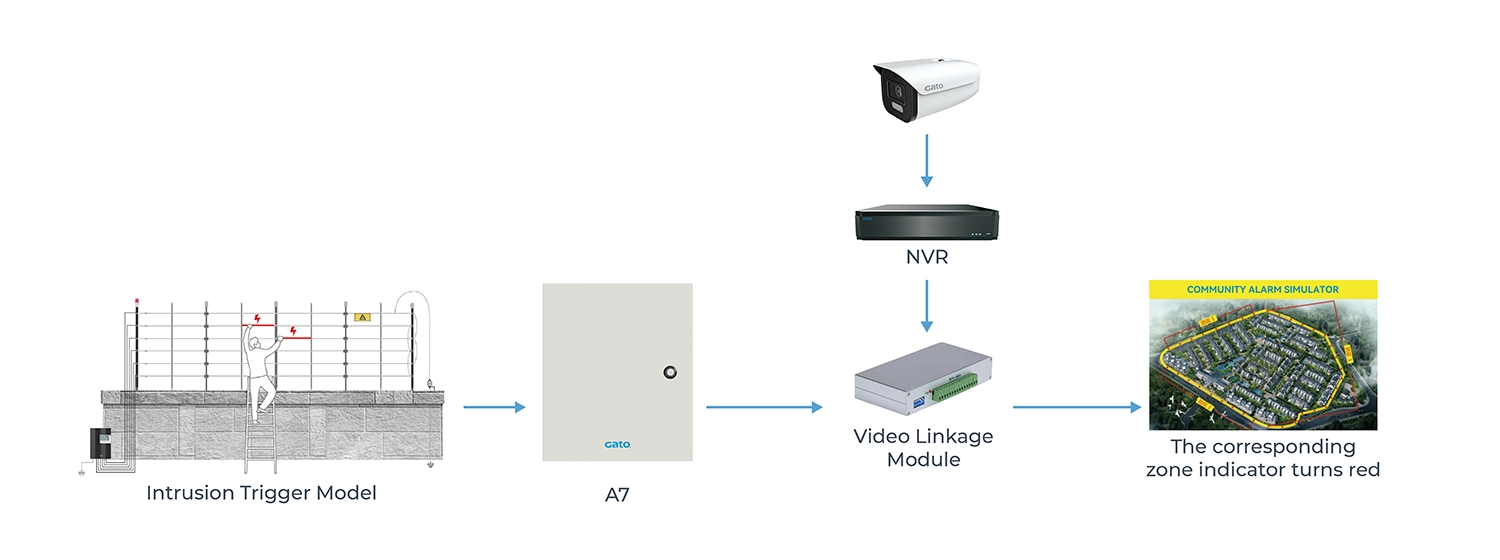

Hard Linkage
It is realized through Guangtuo’s video linkage module, connecting the passive switch output signal of the video linkage module with the switch input interface of the industry hard disk recorder.
Gato's Alarm Products
Relevant Products
- Detection Range of 120km: Dual-channel detection with a range of up to 120km.
- Simultaneous Recognition of 16,000 Points: Locates up to 16,000 intrusion points simultaneously.
- Positioning Within ±1 Meter: Provides accurate intrusion positioning within ±1 meter.
- Network Resilience in Fiber Breaks: Dual-channel fiber optic ensures operation even if the optical cable is cut.
- Configurable Point Whitelist: Designate non-detection zones with flexible whitelist configurations.
- Transmission and reception of the laser beam.
- Transmitter adjusted to emit laser for proper reception by the receiver.
- Alarm triggered when the beam is blocked by an object.
- Beam: 2, 4 beams, beam spacing 15cm
- Detection distance: 50m, 100m, 200m
- Strong penetration ability and long distance.
- High anti-interference capability.
- Reliable operation in rain and fog, with no false positives.
- Remote Control: Power on/off, adjust alarm duration, set voltage values, and preset automatic voltage switching.
- Adjustable Alarm Duration: Set the host’s alarm from 0 to 999 seconds and configure the sound/light alarm working time.
- In the case of climbing or destruction, a short circuit occurs between two adjacent alloy wires.
- A short circuit triggers the alarm
