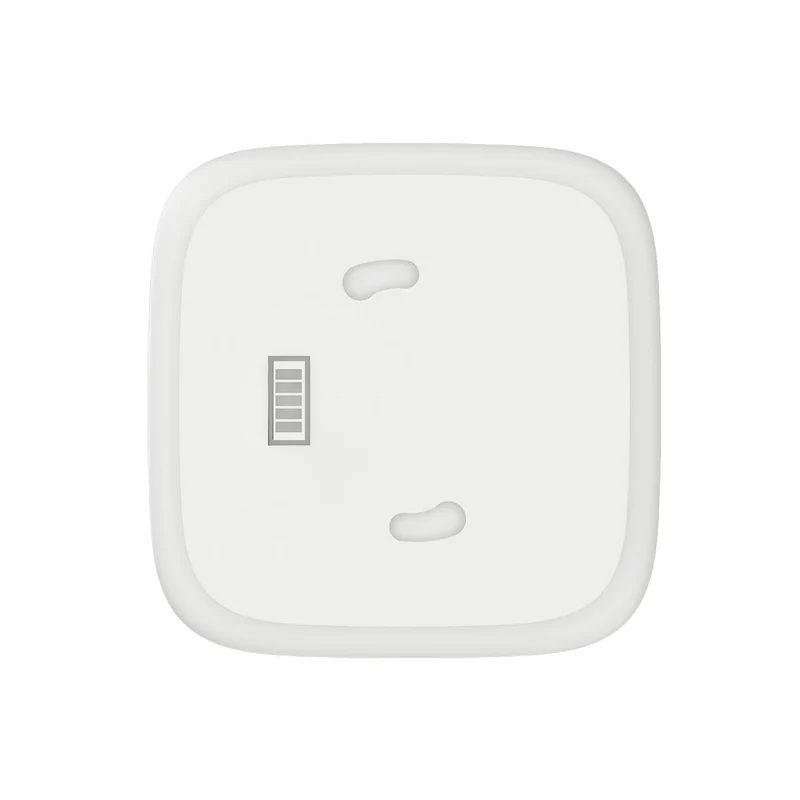

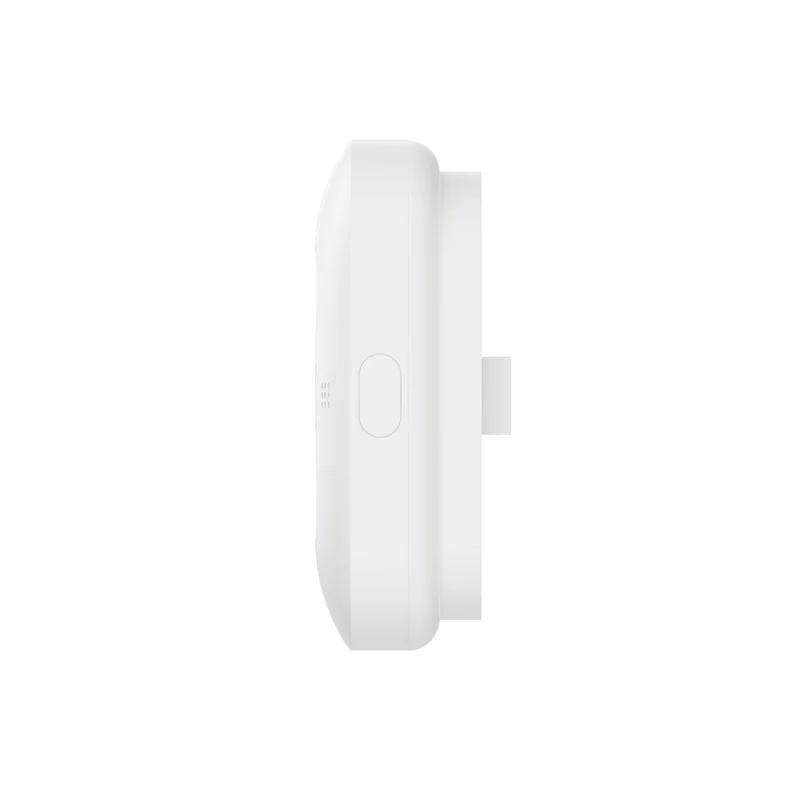

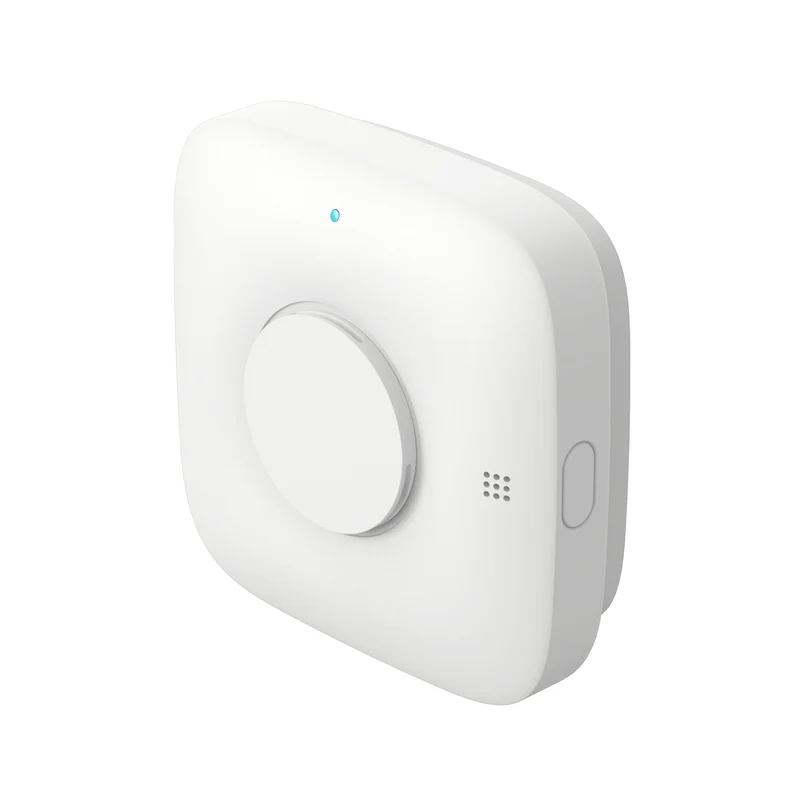

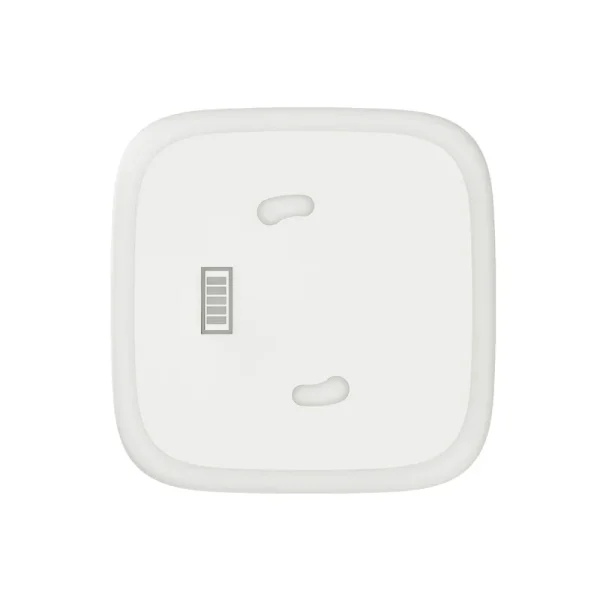

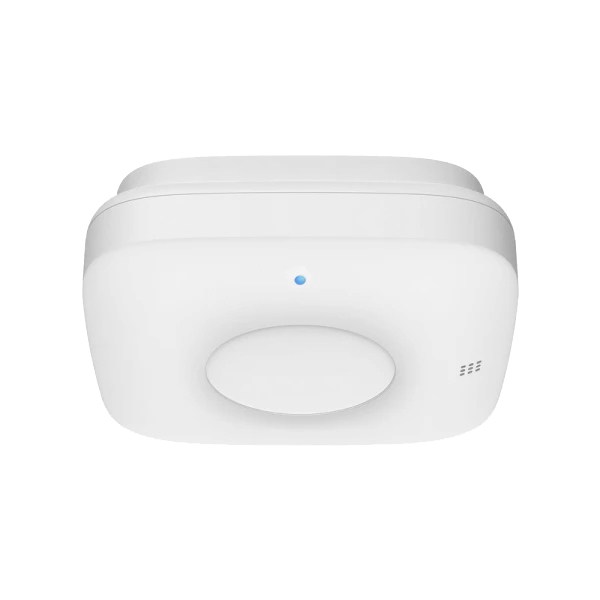

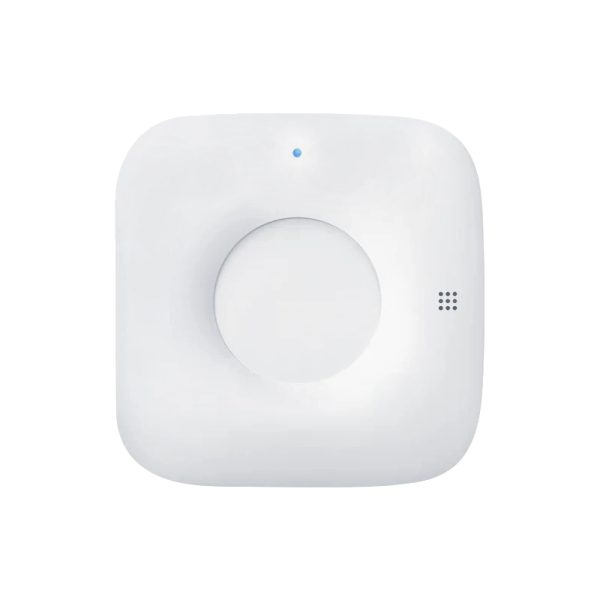

Gas Detector
- Dual Alarm with Sound and Light: The alarm detector flashes a red alarm indicator and emits a siren alarm sound when detecting combustible gas.
- Automatic Alarm State Recovery: When the alarm situation is resolved and the gas concentration returns to the normal range, the alarm device automatically transitions from the alarm state to the monitoring state.
- Automatic Detection of Defense Zone: The alarm device performs regular automatic checks to detect if there are any faults in the defense zone.
- Independent or Networked Use: It can be used either as a standalone sound and light alarm or integrated into a wired network.
Product parameters
Dual Alarm with Sound and Light
| Alarm Concentration15% LEL | Recovery Concentration8% LEL |
| Operation VoltageDC 9~18V or AC 220V | Operation CurrentStatic: ≤100mA, Alarm: ≤150mA |
| Operating Temperature-10°C to +50°C | Operating Humidity≤90% |
| Alarm MethodSound and Light Alarm, Output Wired Signal | StabilityLong-term operation with alarm concentration not exceeding ±5% LEL |
| Alarm Concentration ErrorNot exceeding ±3% LEL |
