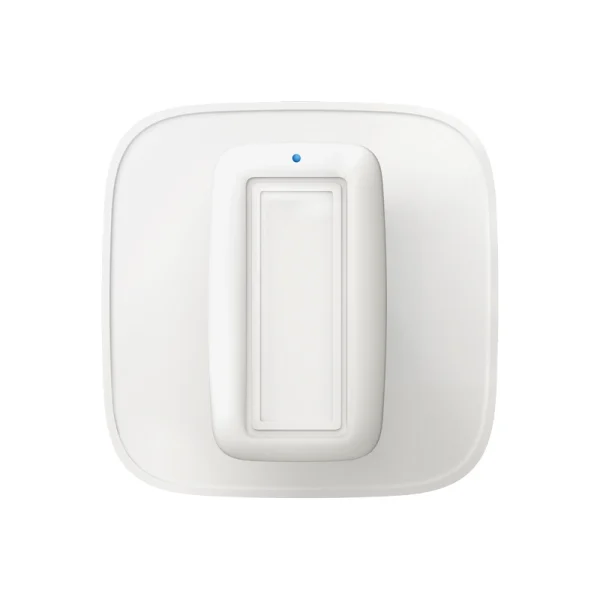

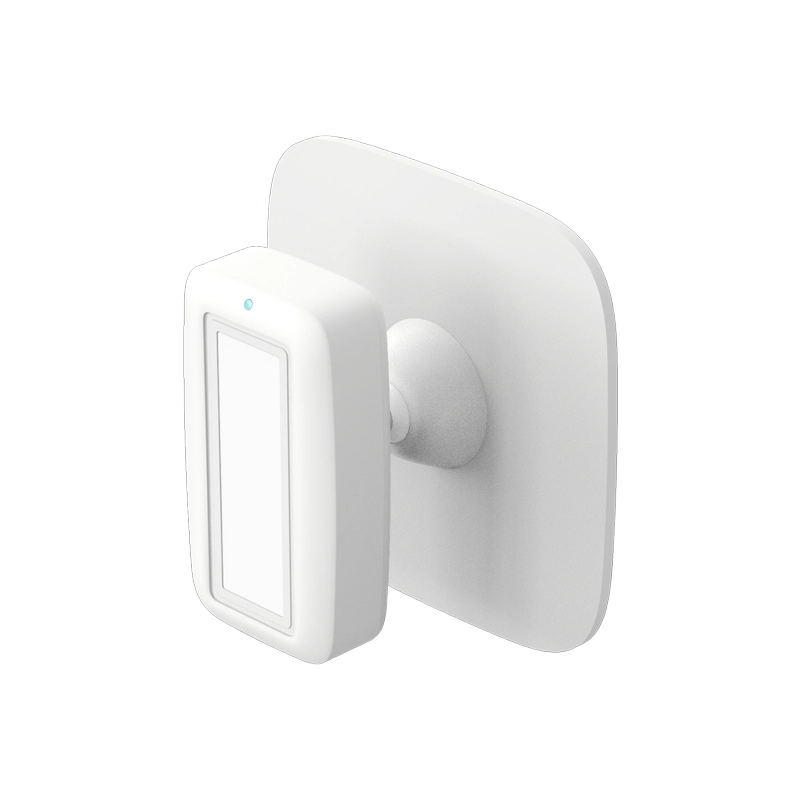

ID51W Wall-Mounted Single Infrared Detector
- Using precise Fresnel lens technology to increase energy reception efficiency
- Dual-element infrared + artificial intelligence dual comparison effectively prevents external interference and enhances the stability of the detector
- With dynamic time division technology, it has super anti-interference ability and pet-proof function
- In order to lessen the “temperature drift” issue brought on by component temperature variations, automatic temperature compensation is implemented.
Product Parameters
| Operating Voltage | DC9~18V |
| Working Current | ≤30mA |
| Operating Temperature | -10℃~+50℃ |
| Self-check Time | 60S |
| Sensor | Dual Element Passive Pyroelectric Sensor |
| Anti-white Light Interference | >8000LUX |
| Installation Height | 1m-2.8m |
| Detection Distance | 8M |
| Detection Angle | 15° |
| Alarm Output | NC/NO Selectable (500mA/30VDC) |
| Tamper Output | Normal Closed (50mA/24VDC) |
