Electric fences are widely used in industrial sites, warehouses, airports, ports, correctional facilities, government installations, gated communities, and high-value private estates. While the materials and layouts may vary, one technical choice influences performance more than most: voltage level.

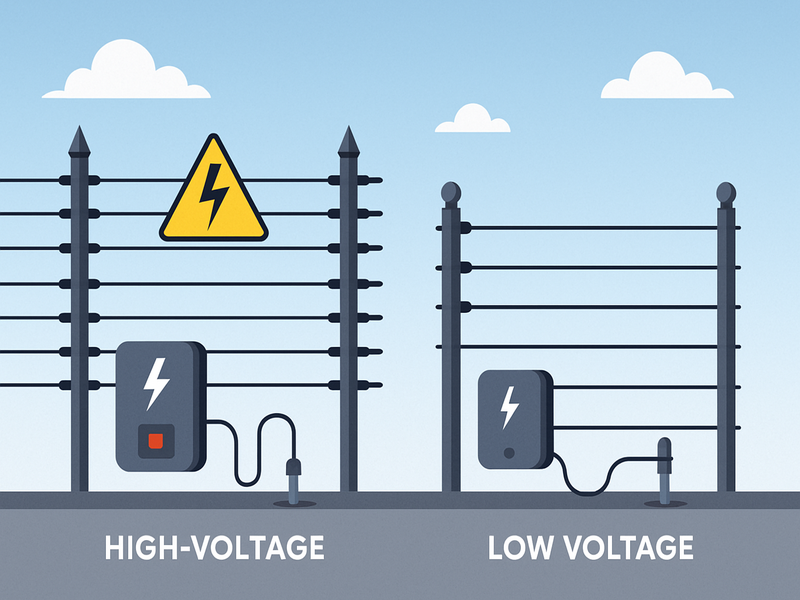

A high voltage electric fence delivers a stronger, more forceful shock, while a low voltage electric fence provides a milder but still noticeable deterrent. The decision affects security strength, public safety, installation cost, and long-term maintenance.
Basics of Electric Fence Voltage
How Electric Fences Work
At the core of every electric fence is the energizer (also called a charger). This apparatus transforms power into high-voltage pulses from a battery or mains supply. These pulses—typically lasting just milliseconds—are sent along conductive wires or tapes.
When a person or animal touches the electrified wire, the electrical circuit completes through the ground system, delivering a brief, controlled shock. The aim is deterrence, not injury. Pulse-based delivery is a safety feature that prevents continuous current flow.
What High and Low Voltage Mean
In perimeter security:
- High Voltage: Operates around 5,000–12,000 volts, delivering a powerful deterrent capable of penetrating basic insulation or heavy clothing.
- Low Voltage: Operates around 2,000–5,000 volts, offering a milder shock suitable for environments where public safety is a higher priority.
The voltage itself is not what causes injury—current (amperage) and pulse duration matter more. However, voltage determines how easily the electrical charge can pass through materials like clothing or vegetation.
Factors Affecting Voltage Delivery
Even with a high-voltage energizer, real-world performance can vary:
- Conductor Resistance – High-resistance wire reduces voltage over distance.
- Insulation Quality – Poor insulators can cause leakage and voltage drop.
- Grounding System – An inadequate ground can reduce fence effectiveness by over 50%.
- Environmental Conditions – Wet foliage, snow, and salt spray can all influence conductivity and shock strength.
High Voltage Electric Fences
Overview
High-voltage fences are built for maximum security.
- Vital infrastructure, including water treatment plants and electricity plants.
- High-security industrial zones storing expensive machinery or hazardous materials.
- VIP residences in areas with elevated threat levels.
These systems are designed to send a strong, memorable signal: “Do not proceed.”
Advantages
- Maximum Deterrence Power –There is a much lower chance of intruders trying to climb or tamper.
- Effective Over Long Distances – Voltage drop is less of a concern for large sites.
- Better Against Insulated Contact – Can penetrate through gloves, heavy jackets, or tools.
- Environmental Tolerance – Performs well even when the fence is partially grounded by wet vegetation or debris.
- Integrated Security Features – Often paired with intrusion detection alarms that trigger instantly on contact or cutting.
Disadvantages
- Higher Safety Risks – Requires adherence to strict safety codes to avoid harmful exposure.
- Increased Operational Costs – More power-hungry than low-voltage systems, especially in long perimeters.
- Complex Installation – Needs heavier-duty components, advanced grounding, and higher-grade insulators.
- Regulatory Challenges – Not all jurisdictions allow maximum voltage near public access points.
Low-Voltage Electric Fences
Overview
Low-voltage fences balance deterrence and safety, making them well-suited for:
- Residential communities with pedestrian access.
- Light commercial properties in urban zones.
- Public buildings and event spaces.
They are designed to deter without posing significant injury risks, often serving as part of a multi-layered security strategy.
Advantages
- Enhanced Public Safety – Safer for areas where accidental contact is more likely.
- Reduced Energy Use – Gradually lowers operating expenses.
- Simpler Maintenance – Lower insulation requirements make repairs quicker and cheaper.
- Regulatory Compliance – Easier to meet legal voltage limits in city or suburban zones.
- Aesthetic Integration – Can be discreetly incorporated into existing fencing.
Disadvantages
- Lower Deterrence Against Determined Intruders – A skilled trespasser with insulating tools may bypass.
- Range Limitations – More prone to voltage drop over long distances.
- Environmental Sensitivity – Wet foliage and grounding can significantly reduce shock strength.
Safety & Regulatory Considerations
In perimeter security, safety is as important as deterrence.
Key compliance points include:
- Voltage Caps – Standards like IEC 60335-2-76 set strict limits, especially for public-facing fences.
- Mandatory Warning Signs – Often placed at intervals of 10–30 meters along the fence.
- Dual-Zone Systems – Some sites use an outer low-voltage zone for warning, with high voltage inside for active deterrence.
- Fail-Safe Designs – Integration with alarms to cut power in emergencies.
Technical Comparison Table
| Feature | High Voltage Electric Fence | Low Voltage Electric Fence |
| Voltage Range | 5,000–12,000V | 2,000–5,000V |
| Deterrence Strength | High – strong physical and psychological barrier | Moderate – adequate for controlled zones |
| Effective Range | Long – minimal drop on large perimeters | Short – noticeable drop on long runs |
| Tamper Resistance | Strong – effective even through clothing/tools | Moderate – bypass possible with insulation |
| Safety Level | Moderate – requires strict compliance | High – safer for public areas |
| Energy Usage | Higher | Lower |
| Maintenance Demand | High – requires regular checks | Lower – less intensive upkeep |
| Best Uses | High-security, industrial borders, VIP estates | Residential, light commercial, public venues |
Best Uses & Application Scenarios
High Voltage
- Airports & Ports – Securing critical entry and cargo zones.
- Correctional Facilities – Preventing escape attempts.
- Military Installations – Securing perimeter against infiltration.
- Large Industrial Sites – Protecting expensive assets and hazardous materials.
Low Voltage
- Corporate Campuses – Providing deterrence without aggressive force.
- Urban Warehouses – Balancing security and public safety.
- Public Parks at Night – Temporary deterrence for restricted areas.
- Event Venues – Controlled crowd management.
Installation & Maintenance Considerations
For maximum reliability:
- Match the Energizer to Fence Length – Oversized energizers can waste power; undersized units underperform.
- Invest in Quality Grounding – Use corrosion-resistant rods and adequate depth.
- Schedule Routine Checks – Inspect wires, joints, and vegetation weekly.
- Adjust Seasonally– Monitor performance in wet and dry seasons.
Integration with Modern Perimeter Security Solutions
Today’s electric fences are rarely stand-alone:
- CCTV Linkage – Cameras activate when a voltage drop or contact is detected.
- Alarm Integration – Sirens or control room alerts on breach attempts.
- Access Control Systems – Fence voltage can be lowered or disabled for authorized entry.
- Remote Monitoring – Operators can check voltage status and faults from anywhere.
Cost Considerations
Installation Costs
- High-voltage systems often require heavier-duty posts, insulators, and energizers, raising upfront costs.
- Low-voltage installations are usually less expensive, especially on smaller perimeters.
Operational Costs
- High voltage: Higher electricity consumption, more component wear.
- Low voltage: More energy-efficient, fewer costly replacements.
Return on Investment
A well-chosen system—paired with other perimeter security measures—can significantly reduce theft, intrusion, and downtime.
Decision-Making Guide
- Identify Threat Level – Match voltage to the seriousness of potential breaches.
- Evaluate Site Conditions – Distance, terrain, and exposure to public areas.
- Check Local Regulations – Ensure compliance before installation.
- Balance Cost & Risk – Sometimes low voltage plus layered security beats high voltage alone.
When matched with professional installation, routine maintenance, and integrated monitoring, both options can dramatically enhance site security.
The right voltage is not just about numbers—it’s about choosing the right tool for your security strategy.
