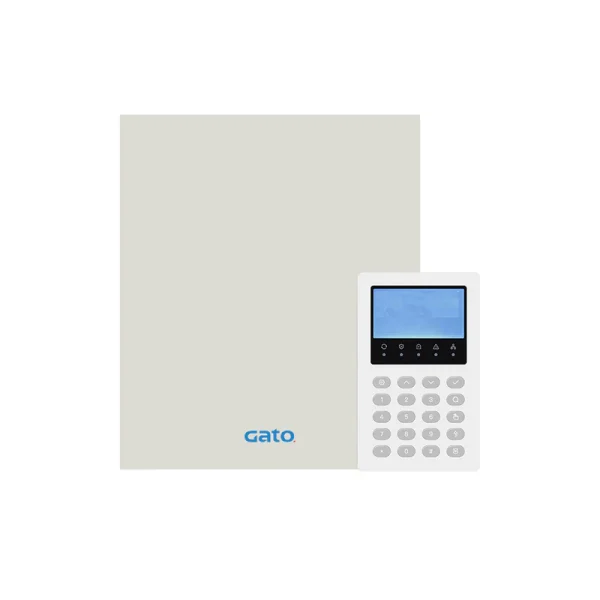

A7 Control Terminal and AK023 Keyboard Control Platform
- BS Architecture: Compatible with different operating systems, access, set, view, and upgrade through browser.
- Large Storage Capacity: It has the capacity to store 5,000 operation logs and 5,000 alarm records.
- Centralized Management: Connect to indoor alarm and perimeter alarm systems at the same time to achieve unified management.
- Multiple Communication Options: Support the RS485 bus and indoor bus at the same time, provide users with multiple options, and provide convenient construction.
- One-click Registration of Equipment: Provides an automatic registration function, which can realize one-click registration of all devices on the bus, maximizing the saving of design time and operation procedures.
Product Parameters
A7 series control terminal and AK023 control keypad.
| Main Power SupplyAC 220V | Backup Power SupplyDC 12V 5A H battery |
| Power18W | Alarm OutputDC12V 600mA |
| Auxiliary Power OutputDC12V 800mA | Communication Interface3 RS485 interfaces, 1 indoor bus interface, 1 100M network interface |
| Printer Interface1 USB interface local guarding area: 8-channel line system | Number of Subsystems8 |
| Operating Temperature-20℃~50℃ | Working Humidity≤ 90%, non-condensation |
| Dimensions304*244*80mm |
