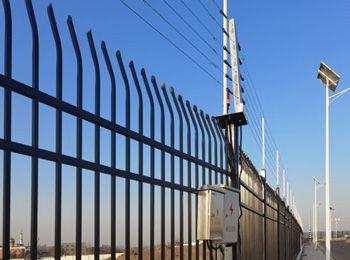

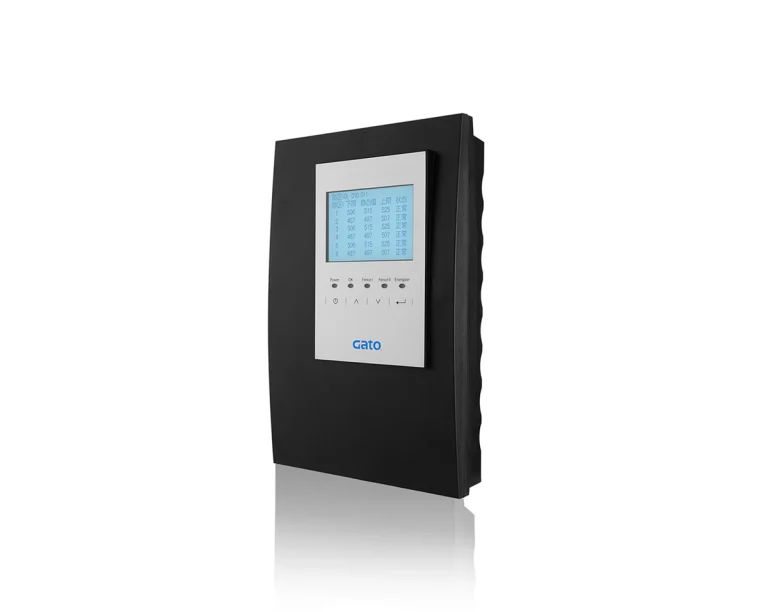

Tensile Electric Fence
- Our Tension Electric Fence is designed with high tensile strength to withstand extreme weather conditions while maintaining optimal performance. The continuous shock system effectively deters unauthorised entry, ensuring your space remains secure.
- With its easy installation, low maintenance and cost-effective design, it is an ideal solution for residential, commercial and industrial use.
Product overview
- A tension electronic fence is an advanced security system that detects and reports any attempt to climb over or breach the fence.The tensile electric fence mainly detects and analyzes the tension change of every wire at the front end, and outputs alarm signals, which has the functions of blocking and deterrence.
Automatic identification
Environment self-adaption
Local settings
Application Advantages

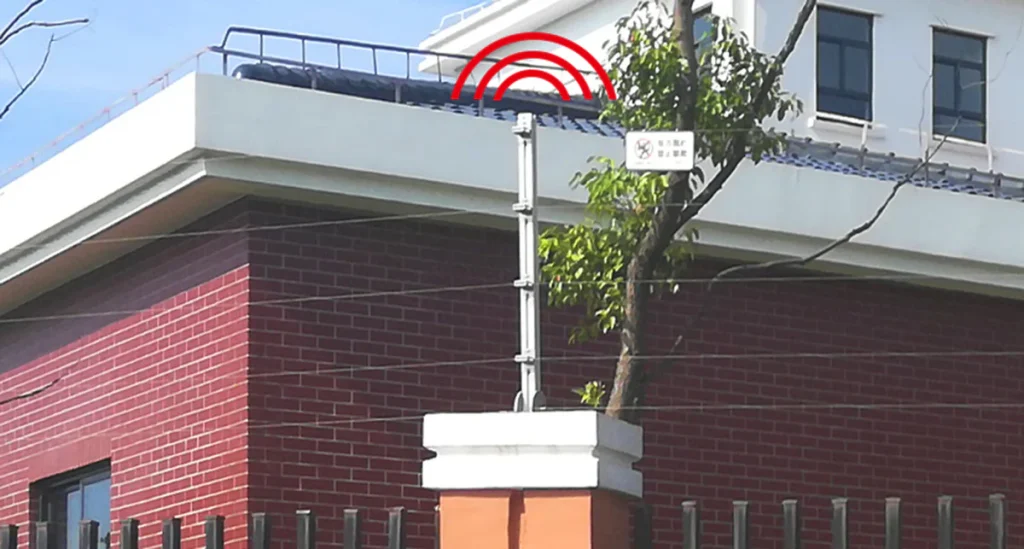

Automatic Identification of Types of Perimeter
The tension energizer automatically recognizes the type of detection rod and wire system on site, ensuring that the appropriate settings are applied for optimal performance. This feature eliminates the need for manual configuration, simplifying installation and maintenance while enhancing the reliability of the security system. By adapting to the specific equipment used, the energizer maximizes its effectiveness in detecting and responding to potential breaches.

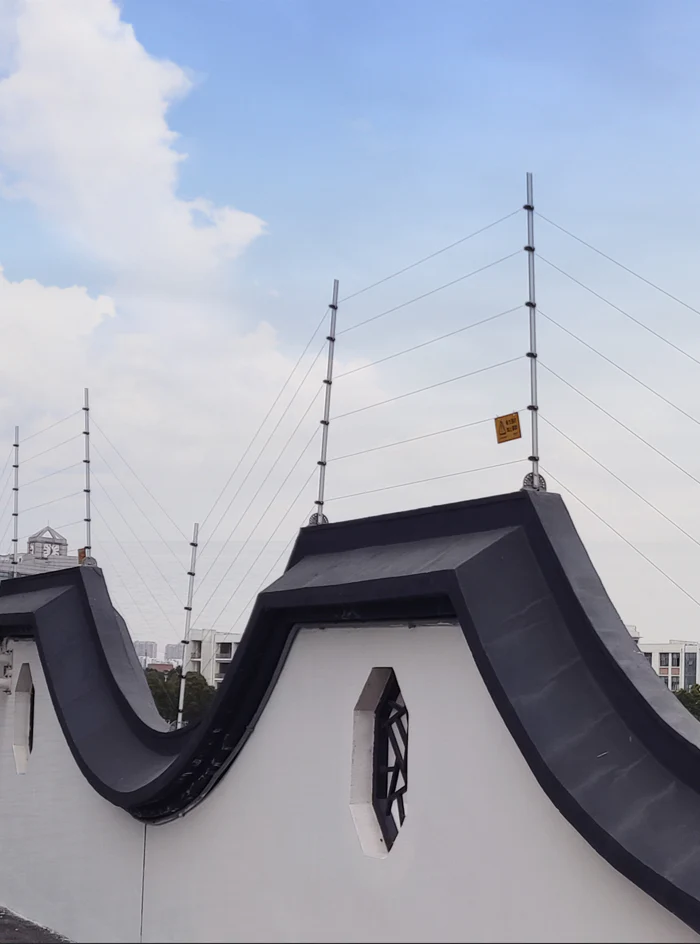

Flexibility to adapt to high and low terrain
Adopt new front-end detection technology, improve signal response sensitivity, improve pulley structure, reduce tension value loss, in the area of multiple corners or high and low drop, signal transmission is not affected, achieve zero missing report.

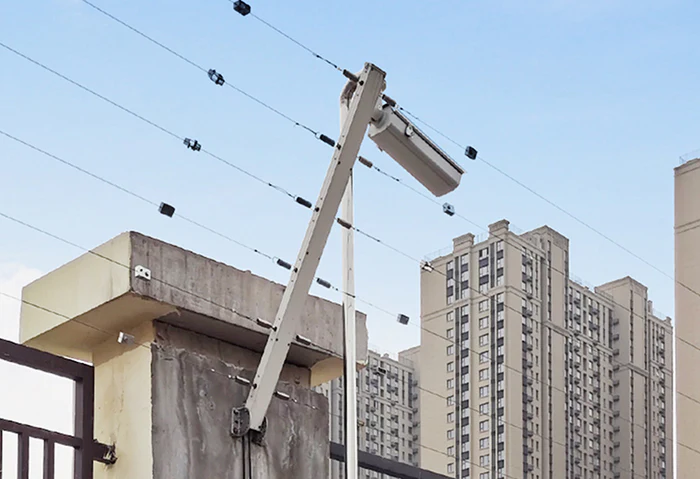

Elastic Adaptive
Utilizing a cable harness method, with 1 communication interface (Ethernet port or RS485), 1 DC12V 800mA power output, 1 rainproof box anti-tamper connection, 1 battery interface, 1 DC head power supply interface, and 1 alarm output interface for each protected area.

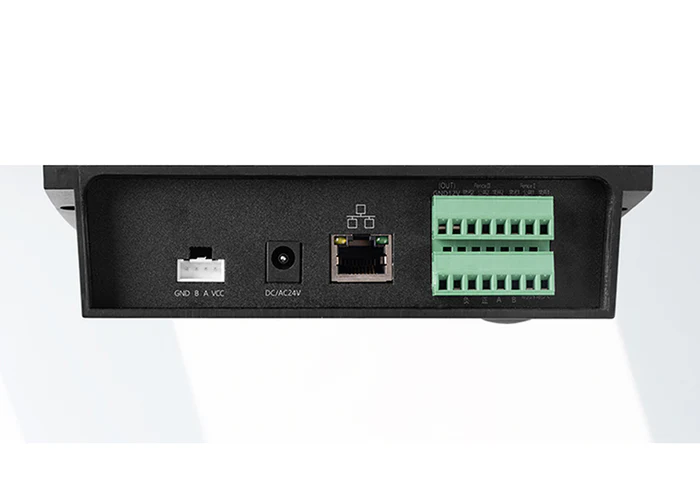

Local Machine Interface, ultra-large storage capacity
Application Scenarios
Critical Infrastructure
Tensile electric fences secure critical sites like power plants, telecommunication towers, and water treatment plants by preventing unauthorized access, theft, or sabotage, ensuring safety and continuous operation of vital services through high resistance and deterrence.
High-Security Areas
Tensile electric fences provide strong deterrence in military bases, prisons, and government buildings by preventing climbing, cutting, and tunneling. Combined with other security systems, they protect high-risk areas from unauthorized entry and terrorist threats.
Residential and Commercial
Tensile electric fences offer impenetrable security for private estates, gated communities, and commercial spaces, providing effective protection against unauthorized entry while being visually unobtrusive. They are also cost-effective for warehouses and industrial complexes to prevent theft.
Environmental and Animal Protection
In wildlife reserves and agricultural land, tensile electric fences prevent poaching, illegal hunting, and animal intrusion. They provide humane, effective barriers for livestock management and protect against damage or disease, ensuring safety and balance in ecological environments.

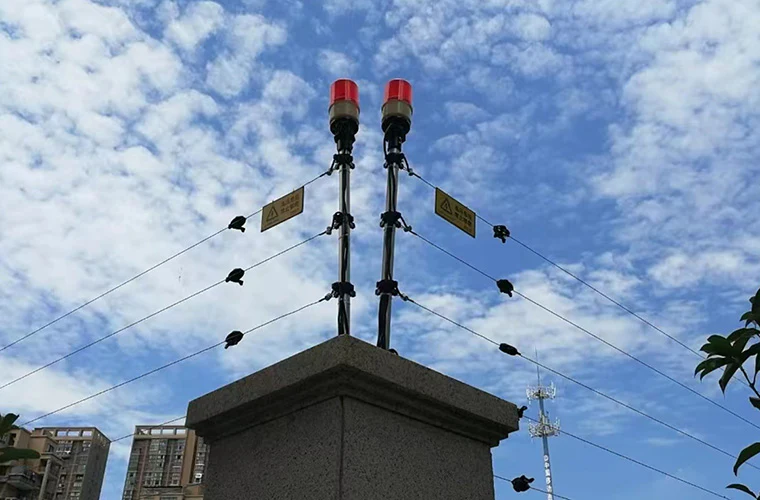

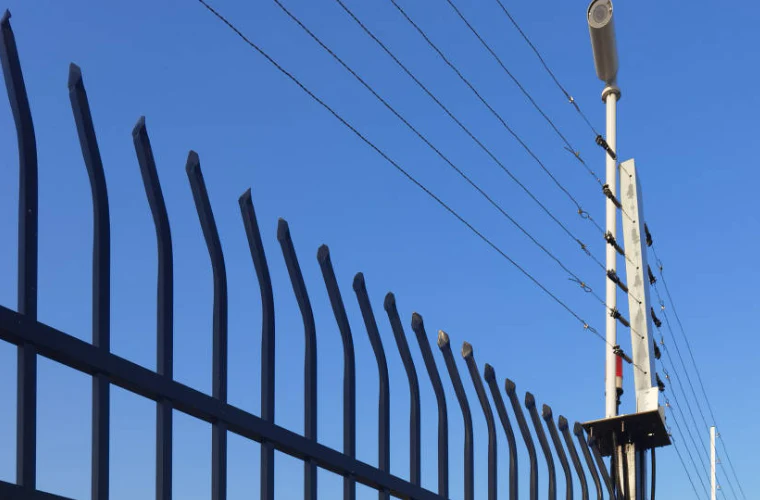

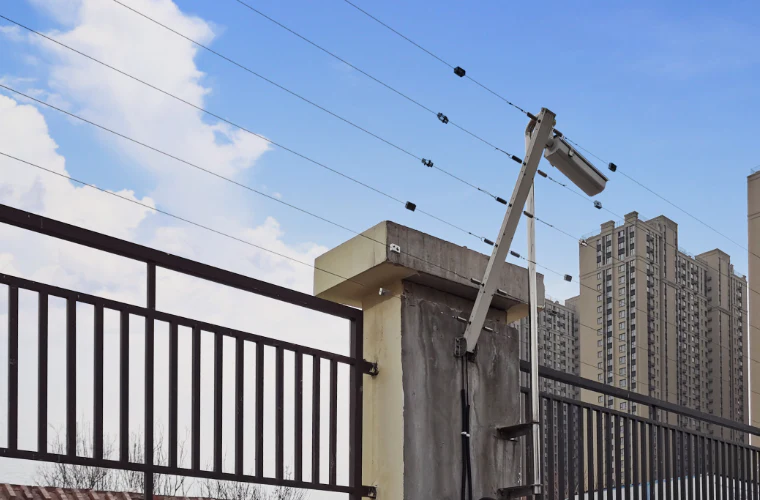

Installation effect
Product Parameters

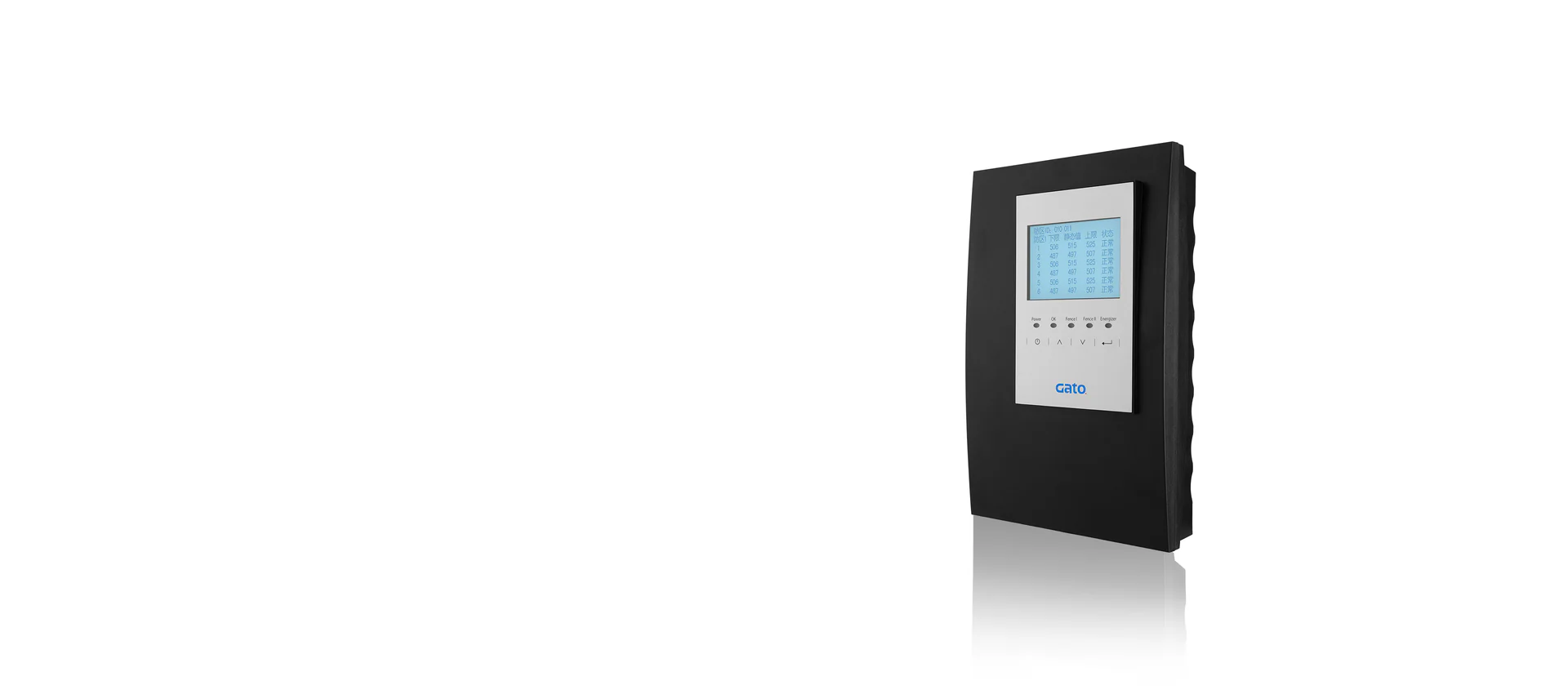

V7 Tensile electric fence
Type of guarding area
self-adaptive guarding area
Type of wire system
self-adaptive wire system
Main power supply
AC220V (power adapter), DC24V, AC24V
Backup power supply
DC12V battery
Operating environment
temperature: -40℃~+80℃ relative humidity ≤95%
Alarm delay
≤2s
Power
Maximum power 15W
Communication interface
RS485 or network interface
Alarm output interface
1 channel per guarding area, normally open, normally closed, public
Power output interface
1 DC12V 800mA output
Alarm input
1 channel
Dimensions
239 mm×156 mm×55mm
Relevant Products
- Detection Range of 120km: Dual-channel detection with a range of up to 120km.
- Simultaneous Recognition of 16,000 Points: Locates up to 16,000 intrusion points simultaneously.
- Positioning Within ±1 Meter: Provides accurate intrusion positioning within ±1 meter.
- Network Resilience in Fiber Breaks: Dual-channel fiber optic ensures operation even if the optical cable is cut.
- Configurable Point Whitelist: Designate non-detection zones with flexible whitelist configurations.
Working Principle:
- Transmission and reception of the laser beam.
- Transmitter adjusted to emit laser for proper reception by the receiver.
- Alarm triggered when the beam is blocked by an object.
- Beam: 2, 4 beams, beam spacing 15cm
- Detection distance: 50m, 100m, 200m
- Strong penetration ability and long distance.
- High anti-interference capability.
- Reliable operation in rain and fog, with no false positives.
- Remote Control: Power on/off, adjust alarm duration, set voltage values, and preset automatic voltage switching.
- Adjustable Alarm Duration: Set the host’s alarm from 0 to 999 seconds and configure the sound/light alarm working time.
- In the case of climbing or destruction, a short circuit occurs between two adjacent alloy wires.
- A short circuit triggers the alarm
