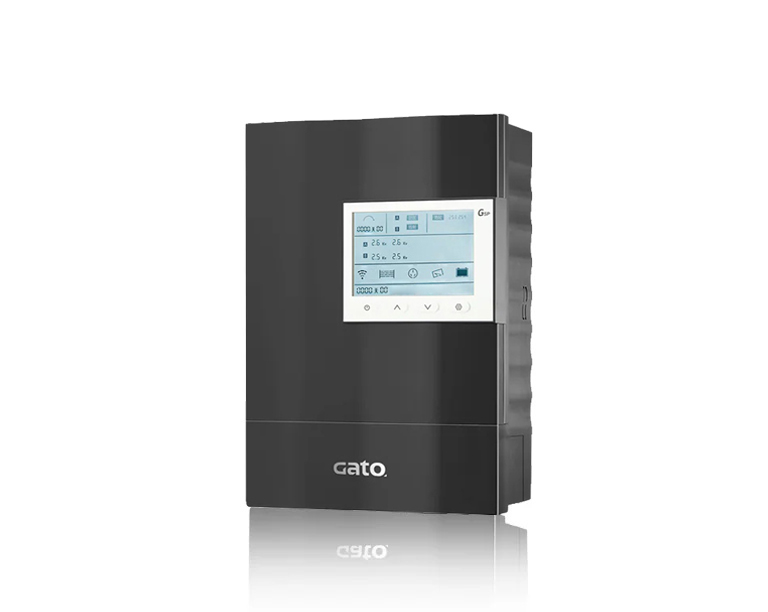

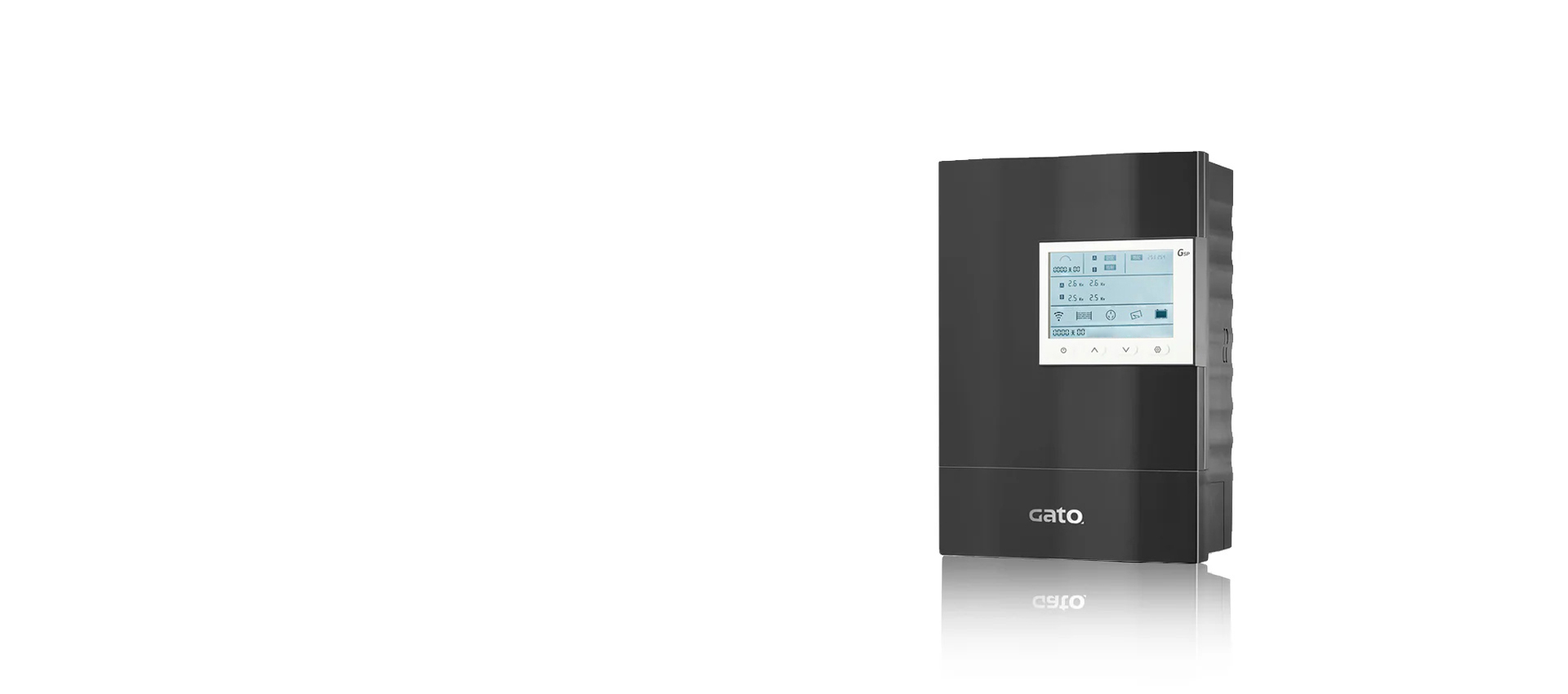

G5P Pulse Electric Fence
- Protect your property with our reliable pulse electric fence. Designed for ultimate security, it delivers intermittent high voltage pulses to deter intruders without causing harm.
- Energy efficient, cost effective, and easy to install, our pulse fences offer unmatched durability and protection, ensuring peace of mind for residential, commercial, and agricultural applications. Keep your perimeter secure around the clock!
- Easy to install: Quick and simple to set up, requiring less maintenance and expertise.
- Durable: Withstands harsh weather conditions and has a long service life.
- Customizable: Can be customized to suit different fence sizes, areas, and security needs.
Product overview

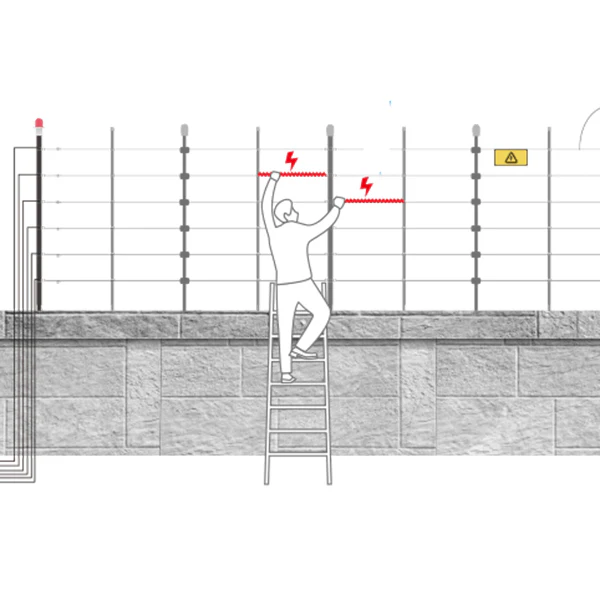

- For the pulse electric fence, the pulse generated by the energizer is transmitted to each front-end alloy wire through high-voltage insulated wires. This system provides a robust security barrier. In case of climbing or destruction, it will cause a short circuit between two adjacent alloy wires, triggering the alarm immediately.
- The fence thus serves dual purposes of blocking intruders and deterring potential breaches. Its design ensures that the pulses are non-lethal yet effective, making it a reliable choice for perimeter security while maintaining safety standards.
Local display of IP address
high voltage pulse electricity
Remote control
Application Advantages
You can set the local address, single and double defense area selection,anti-disassembly alarm enable, battery undervoltage alarm function through the machine.
Each Line With High Voltage Pulse Electricity
High voltage, low current pulse electricity, each line with 5000-10000V pulse electricity, security effect is more comprehensive. A variety of communication methods: built-in Ethernet, RS485, wireless, GSM rich interfaces, improve product communication connectivity and stability, to meet the needs of different transmission schemes.
Remote Control
Without address code, directly connected to the A7 alarm host can easily manage, set front-end equipment, remote defense area deployment withdrawal, mode switching, output voltage adjustment, sensitivity adjustment, alarm response time adjustment, etc.

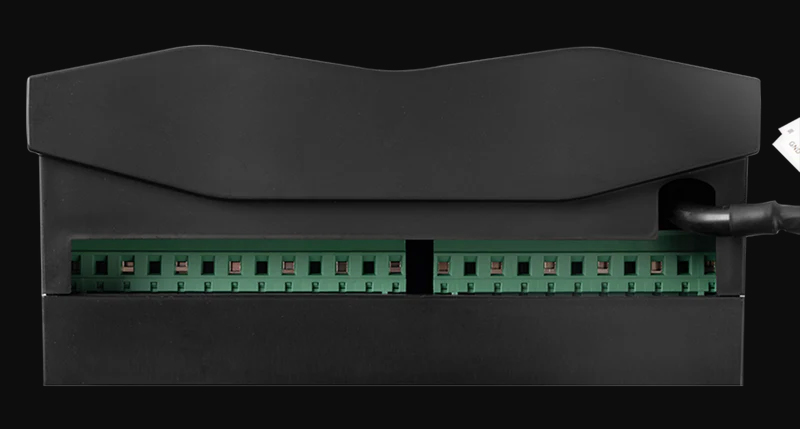

Local Machine Interface
Utilizing a cable harness method, with 1 communication interface (Ethernet port or RS485), 1 DC12V 800mA power output, 1 rainproof box anti-tamper connection, 1 battery interface, 1 DC head power supply interface, and 1 alarm output interface for each protected area.

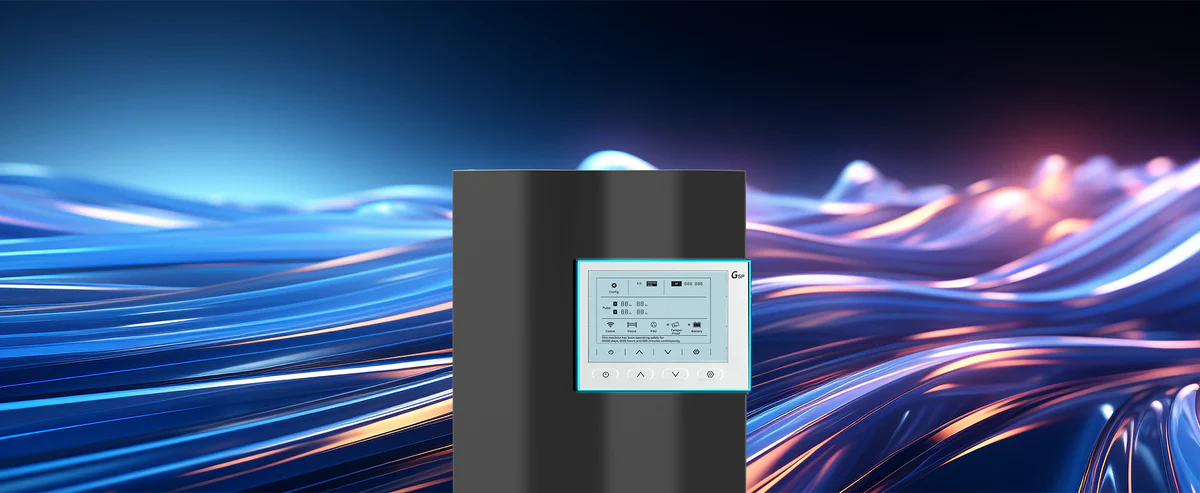

Local Display of IP Address
The last two segments of the IP address of the pulse electric fencing energizer are displayed locally, which is convenient for on-site debugging and maintenance.
Application Scenarios
Rail Traffic
The electronic fence provides a strong security guarantee for the railway line and important facilities. It can effectively prevent unauthorized personnel from entering the orbital area and reduce the occurrence of accidents. At the same time, by integrating with the monitoring system, it can quickly respond to any security incidents and maintain the normal operation of rail transit.
Factory Logistics
Electronic fencing provides reliable security protection for warehousing and logistics centers. It can effectively monitor perimeter security, prevent goods from being stolen or damaged, ensure the safe and smooth operation of the logistics chain, and reduce economic losses.
Electric Power Facility
Electronic fencing is one of the key technologies to protect critical infrastructure. It protects against potential security threats such as vandalism and theft, ensures the safe operation of power and water facilities, and avoids major security incidents.
School Education
The electronic fence provides comprehensive security protection for the campus to ensure the personal safety of teachers and students. It can prevent outsiders from illegally entering the campus, and also provide an effective means of security monitoring for school administrators to maintain campus order.

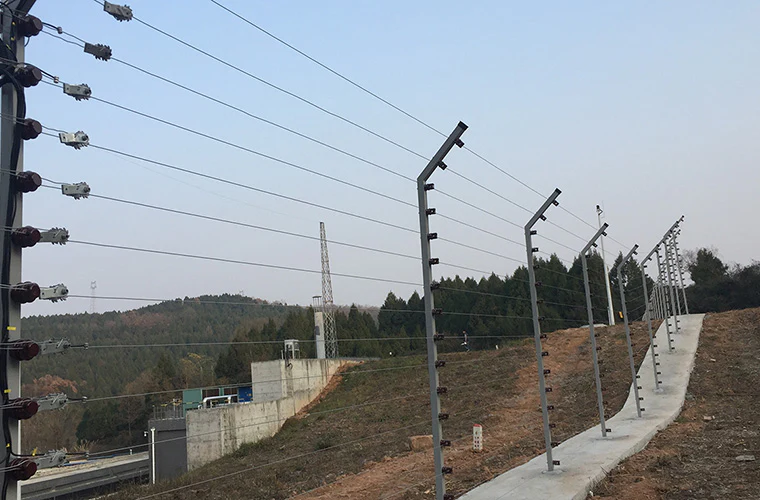

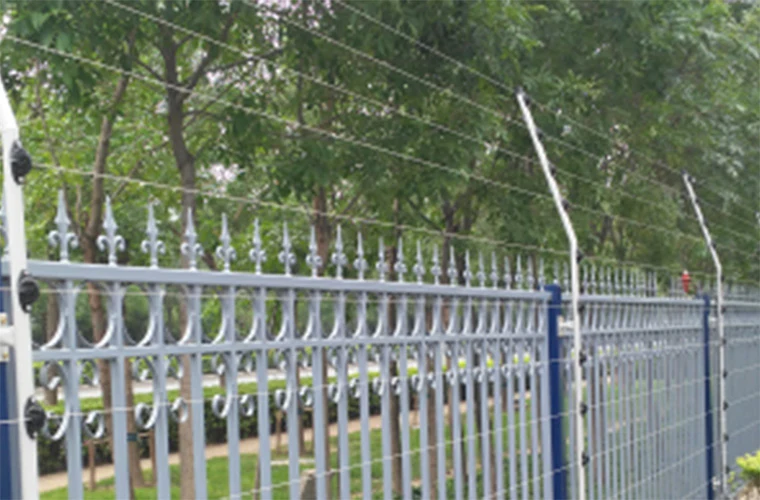

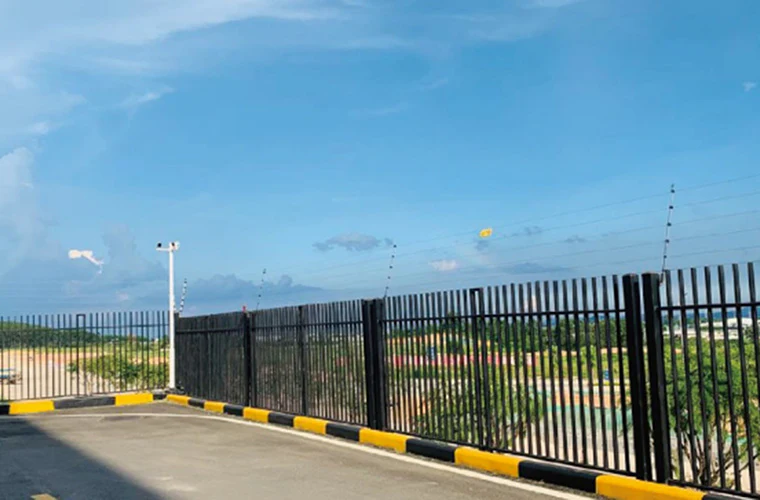

Installation effect
Parameters of G5p Pulse Electric Fence
Main power supply
AC220V (power adapter), DC24V, AC24V
Backup power supply
DC12V battery
Operating environment
temperature: -40℃~+80℃ relative humidity ≤95%
Alarm delay
≤2s
Power
Maximum power 15W
Communication interface
RS485 or network interface
Alarm output interface
1 channel per guarding area, normally open, normally closed, public
Power output interface
1 DC12V 800mA output
Alarm input
1 channel
Dimensions
290*205*96mm
G5p display size
4.5 inches
Parameters of G4 Pulse Electric Fence
Main power supply
AC220V (power adapter), DC24V, AC24V
Backup power supply
DC12V battery
Operating environment
temperature: -40℃~+80℃ relative humidity ≤95%
Alarm delay
≤2s
Power
Maximum power 15W
Communication interface
RS485 or network interface
Alarm output interface
1 channel per guarding area, normally open, normally closed, public
Power output interface
1 DC12V 800mA output
Alarm input
1 channel
Dimensions
290*205*96mm
Relevant Products
- Detection Range of 120km: Dual-channel detection with a range of up to 120km.
- Simultaneous Recognition of 16,000 Points: Locates up to 16,000 intrusion points simultaneously.
- Positioning Within ±1 Meter: Provides accurate intrusion positioning within ±1 meter.
- Network Resilience in Fiber Breaks: Dual-channel fiber optic ensures operation even if the optical cable is cut.
- Configurable Point Whitelist: Designate non-detection zones with flexible whitelist configurations.
Working Principle:
- Transmission and reception of the laser beam.
- Transmitter adjusted to emit laser for proper reception by the receiver.
- Alarm triggered when the beam is blocked by an object.
- Beam: 2, 4 beams, beam spacing 15cm
- Detection distance: 50m, 100m, 200m
- Strong penetration ability and long distance.
- High anti-interference capability.
- Reliable operation in rain and fog, with no false positives.
- Remote Control: Power on/off, adjust alarm duration, set voltage values, and preset automatic voltage switching.
- Adjustable Alarm Duration: Set the host’s alarm from 0 to 999 seconds and configure the sound/light alarm working time.
- In the case of climbing or destruction, a short circuit occurs between two adjacent alloy wires.
- A short circuit triggers the alarm
