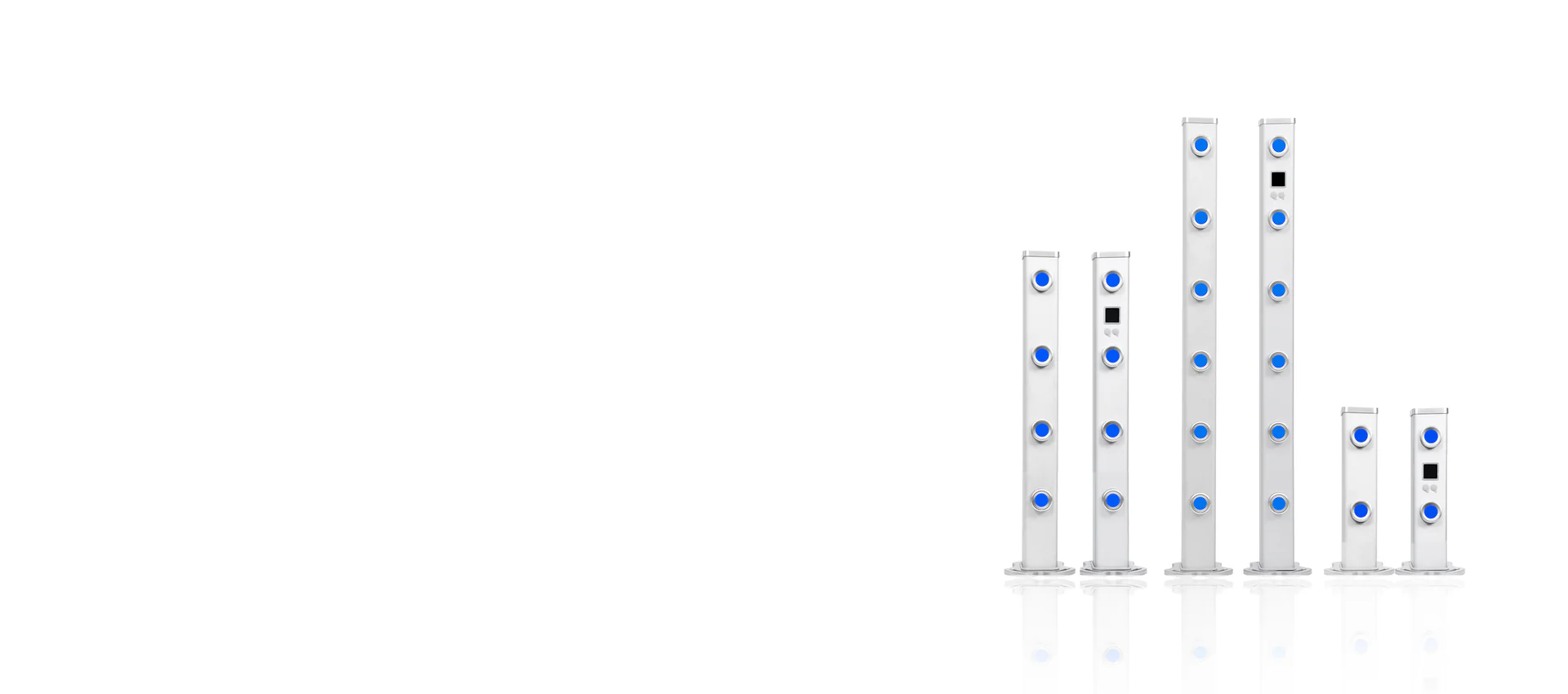

C3 Laser Beams
- Our laser beam system ensures accurate, real-time intrusion detection with all-weather performance and minimal false alarms in any environment.
- It integrates easily with security platforms, offers flexible installation, and provides long-lasting, low-maintenance protection for critical perimeter security applications.
Product Overview
- The working principle of laser beam is based on the transmission and reception of the laser beam. The operation adjusts the transmitter to emit the laser beam to ensure that the beam is normally received by the receiver. When there is an object blocking the beam, the laser beam system will generate an alarm.
- The laser has strong penetration ability and long distance, strong anti-interference, even in rain and fog weather, the beam can reach the receiving end normally, and will not cause false positives.
Independent double light source
One-click intelligent dimming
Full network support
Independent double light source
Full network support
One-click intelligent dimming
Product Personalized Features
Customized narrowband lenses
Supports local upgrades
Product Featured Contents
Intelligent obstruction alarm
Each beam can be individually turned on or off.Distinguish between real intrusion and natural interference through intelligent settings.
Soft start protection
Utilizing APC power regulation technology to extend the service life of the equipment and ensure system safety.Gradual voltage rise avoids instantaneous high current impact, ensuring a smooth and reliable start.
Human-machine interaction
1.5-inch OLED screen display.Displays the intensity and working status of each laser beam.Makes settings and control more convenient.
Multiple power supply options
All-aluminum alloy housing
Adjustable body angle
Application Scenarios

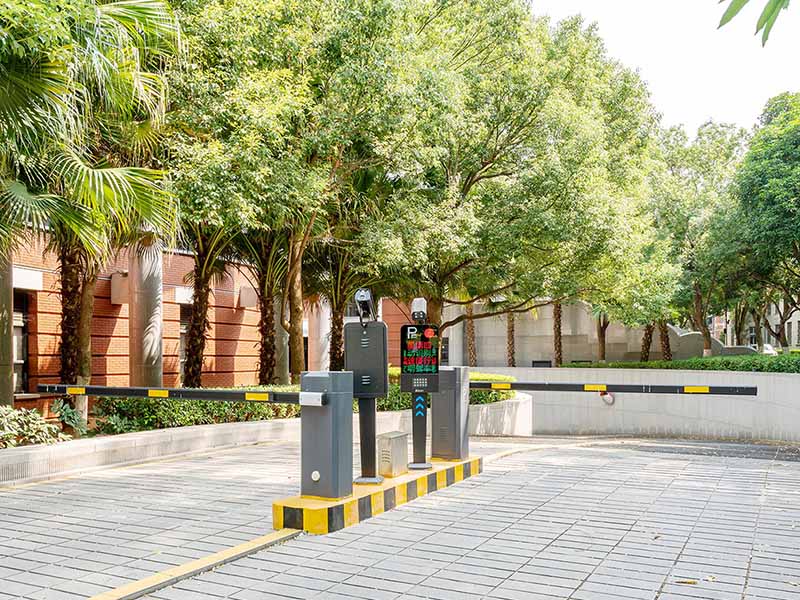

Entrance and Exit Inspection
Pedestrian access: At the entrance of a vital facility, it can be used to detect people trying to enter or leave.
Vehicle access: Detection of vehicle entry and exit, especially where automatic counting or altitude identification is required.

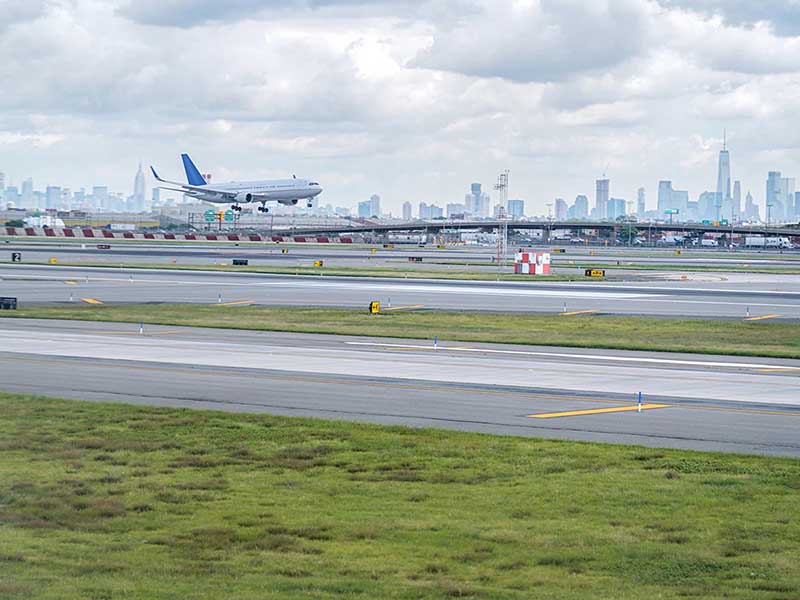

Perimeter Intrusion Alarm
Closed area: Form an invisible cordon around the perimeter of sensitive facilities.
Open areas: such as airport runways, energy facilities, etc., can detect a longer distance intrusion.
Traffic Condition Monitoring
Bridges and tunnels: Monitor traffic flow and detect anomalies such as accidents or congestion.
Along the railway line: Monitor obstacles on both sides of the track to prevent train accidents.

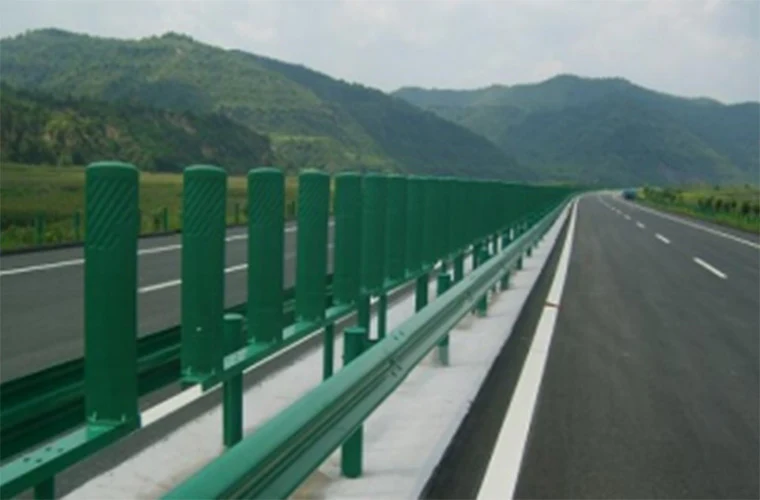

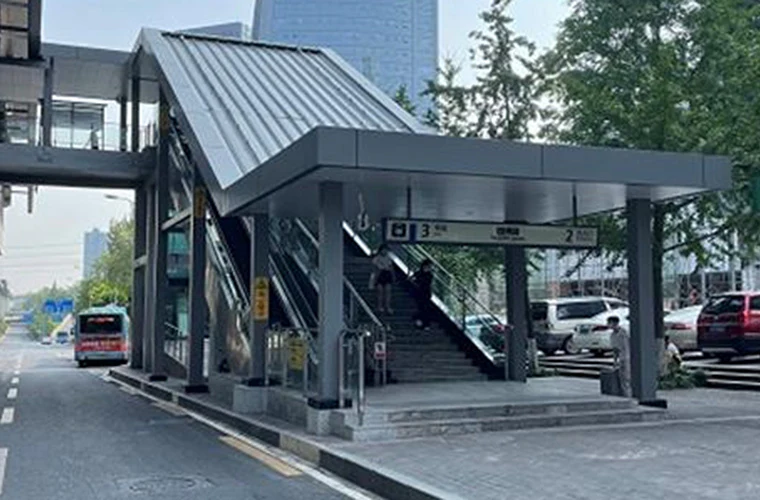

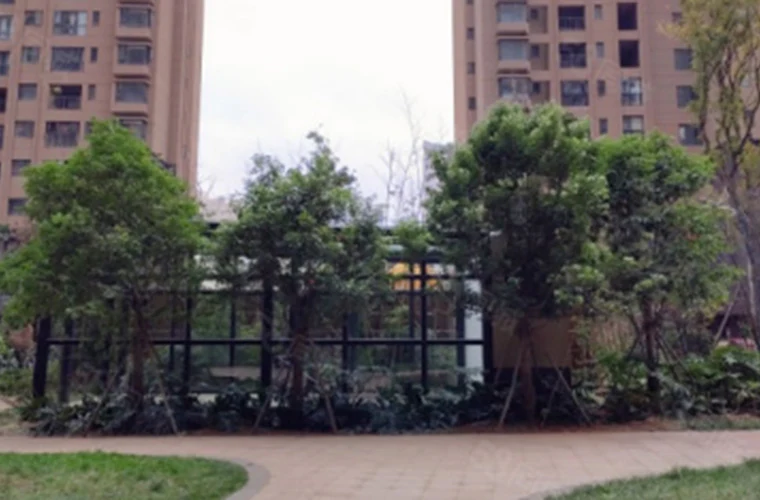

Installation effect
Product Parameters

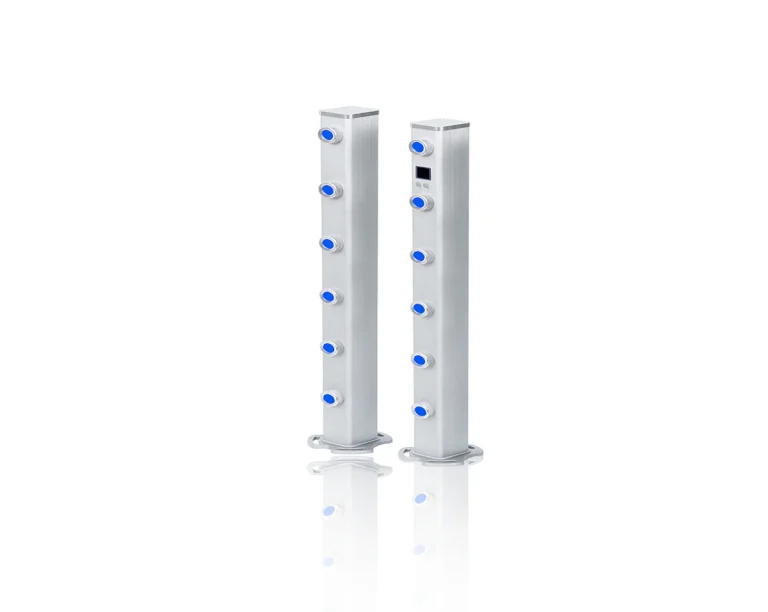

C3 Laser beam
Laser wavelength
808nm, visible light wavelength: 650nm (red light)
Beam
2, 4 beams, beam spacing 15cm
Detection distance
50m, 100m, 200m
Material
Aluminum alloy
Power supply
DC10~30V or AC24V
Angle adjustment
Horizontal ±15°, vertical ±15°
Protection level
IP66
Alarm output
Normally open, normally closed dry node output
Operating temperature
-40~80℃
Working humidity
≤95%
