Integrated Tensile Electric Fence System
Secure high-risk perimeters with a safe, non-electrified tensile fence that detects climbing, cutting, pulling, and slackening in real time.
- Environmental Adaptability Function
- Linear and AngularVelocity Vector Sensing Module
- Quick Setup: Built-in Wi-Fi Module
Integrated Tension Fence Category Advantages

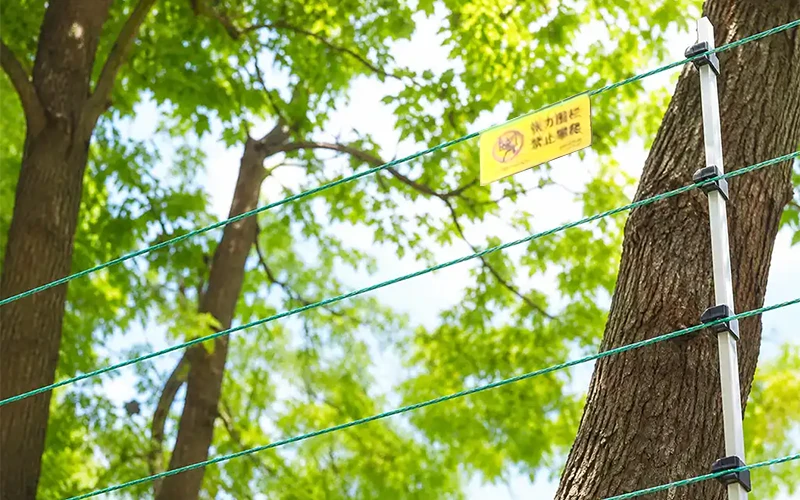

Passive Front End (No Power at the Perimeter)

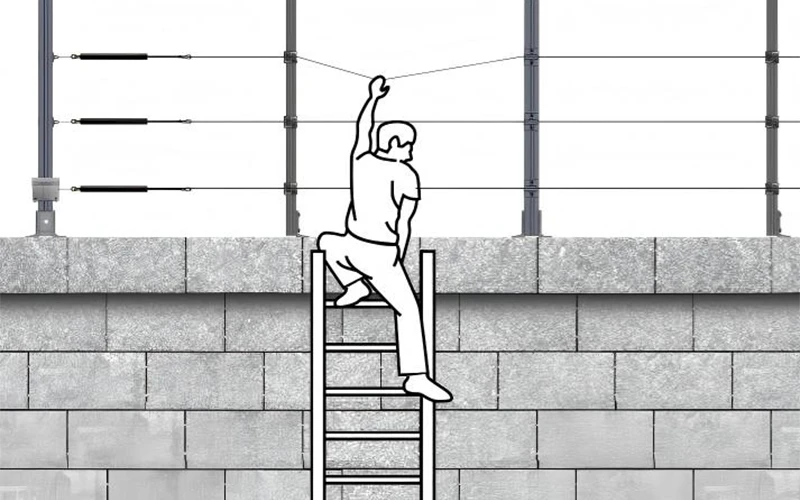

Physical Barrier

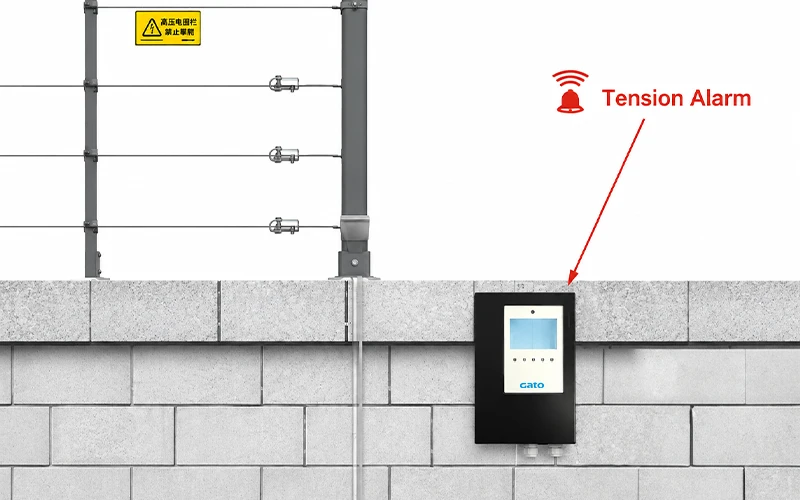

Alarm
Our Integrated Tensile Electric Fence Solution
Gato’s integrated tensile electric fence combines a strong physical barrier with real-time mechanical tension detection. The front-end fence carries no high-voltage electricity, while the controller continuously monitors tension changes to identify climbing, pulling, cutting, slackening, tampering, and power abnormality events.
- Integrated Design: Combines sensing, control, and processing modules for stable operation and low failure rates.
- Durable Sensing Module: Withstands 50,000 cable pull cycles, with isolated mechanical structure for strong anti-interference performance.
- Fast Configuration: Built-in Wi-Fi enables quick setup of address, sensitivity, and alarm delay via mobile browser.
- Self-adaptive Thresholds: Deep learning adjusts alarm thresholds automatically to reduce environmental false alarms..
- Online Monitoring: Supports self-diagnosis and fault alarms for sensing and Wi-Fi modules.
- Direct Alarm Light Output: Each zone supports direct alarm light connection without external power.
- Direct Communication: Connects to the alarm panel via RS485 or network, without extra address modules.
- Single-wire Isolation: Faulty tension wires are isolated while other wires continue working normally.
Core Strengths
Safer Front-End
Non-electrified design for schools, communities, oil depots, chemical plants, and other sensitive sites.
Faster Setup
WiFi and software configuration reduce installation and maintenance time.
Fewer False Alarms
Adaptive tension thresholds improve stability in wind, temperature changes, and wire stress.
Reliable Sensing
Independent linear vector sensor resists impact and electromagnetic interference.
Barrier + Alarm
Provides physical protection with instant intrusion alerts.

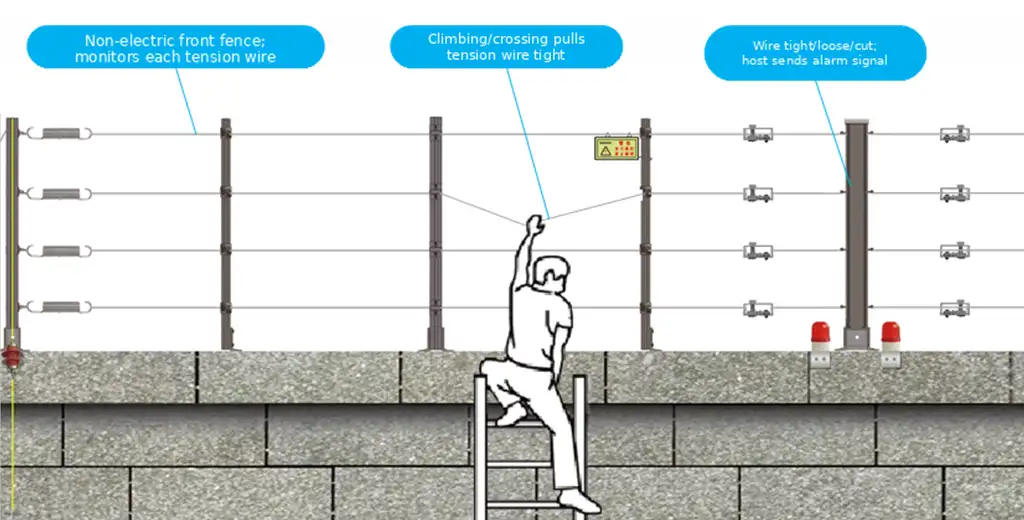

How It Works
The integrated tensile electric fence forms a physical perimeter barrier with tension wires and detection poles. When someone climbs, pulls, cuts, or loosens the fence, the wire tension changes immediately. The integrated controller detects the abnormal tension value and sends an alarm signal to linked security devices or management platforms.
Applications
Residential Communities
Improve perimeter protection for high-end communities with a safe, non-electrified fence that detects climbing and tampering in real time.
Schools & Campuses
Protect campus boundaries with a visible physical barrier and low-risk intrusion detection suitable for safety-sensitive environments.
Oil, Gas & Chemical Facilities
Secure flammable or explosive-risk areas where non-electrified front-end protection and reliable intrusion alarms are required.
Power & Utility Sites
Protect substations, power facilities, and utility assets from unauthorized access, theft, and vandalism.
Cultural Heritage & Public Facilities
Add perimeter detection to museums, cultural relic sites, parks, and public facilities where safety, stability, and low visual complexity matter.
Real Project Application
Cambodia Airport Oil Depot Project
Project Background
The Cambodia Airport Oil Depot Project supports the new Phnom Penh International Airport, providing safe and stable aviation fuel storage and supply.
Solution
Located near Phnom Penh, the facility uses advanced tank design and automated systems to ensure safety in storage, transport, and emergency response.
Gato deployed a tensile fence perimeter intrusion detection system, enabling real-time alerts for climbing, cutting, or tampering, integrated with alarms and video surveillance to secure this high-risk site.
Outcome
This project marks another milestone for Gato in Southeast Asia, highlighting the reliability of its security solutions in critical infrastructure.
Product Configuration

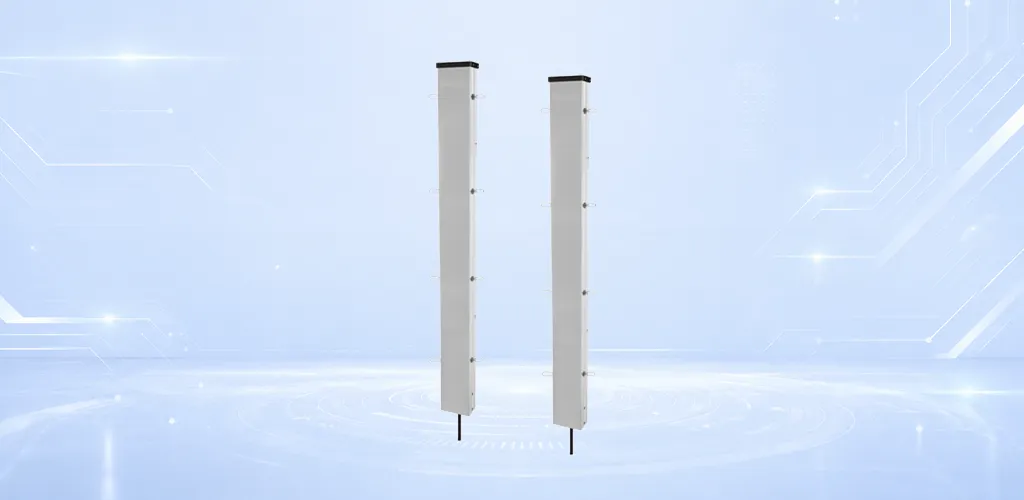

Integrated Tensile Electric Detection Pole
Detects wire cutting, loosening, or pulling through real-time tension monitoring and sends instant alarm signals.

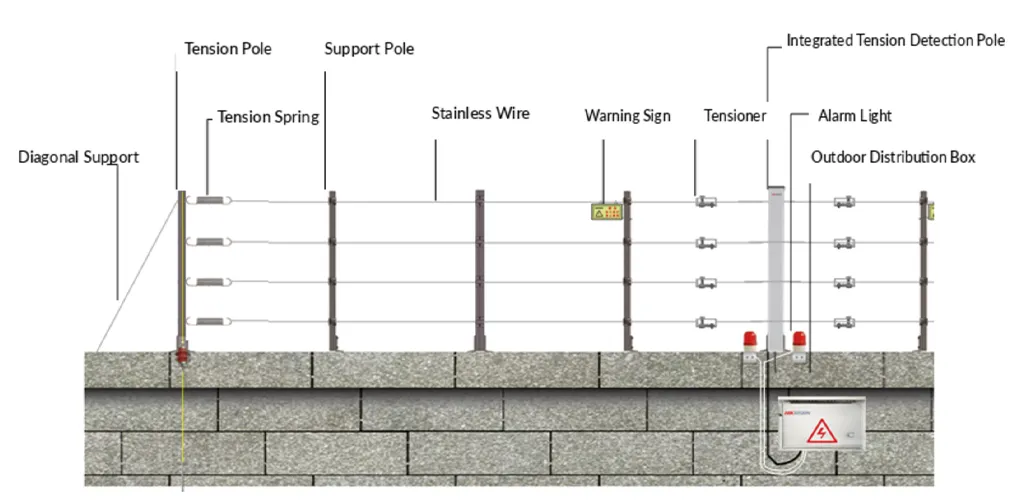

Fence Front End
The system monitors perimeter fence abnormalities in real time and immediately triggers alarms when climbing, pulling, cutting, or other intrusion attempts are detected.
Frequently Asked Questions
What is the core architecture design of the integrated probe rod?
It adopts a highly integrated structure combining detection, control, and processing modules to enhance system stability and reduce failure rates.
Which sensing technology is applied in this system?
A linear angular velocity vector sensing module is used. Its mechanical structure is independently encapsulated and completely isolated from the circuit board, providing stronger anti-interference and anti-fatigue capabilities.
How are environmental false alarms decreased by the algorithm?
Based on deep learning algorithms, it features environmental self-adaptation. It can automatically adjust the tightening and loosening alarm thresholds based on the static value change curve.
How does the system handle physical damage to individual tension wires?
It supports single-wire shielding. When one or several tension wires are damaged, the faulty wire(s) can be shielded, allowing the remaining wires to continue normal operation.
What is the economic benefit of the full-network architecture solution?
By utilizing existing networks to reduce communication cabling, line costs can be reduced by approximately 40%, and installation costs by approximately 30%.
How is on-site debugging and parameter configuration achieved?
The device has a built-in Wi-Fi module and supports online quick configuration of local address, sensitivity, alarm delay and other parameters via a mobile phone browser.
What alarm coordination modes does the system support?
It supports video coordination (including API soft triggering and dry-contact hard triggering) and lighting coordination (triggering lighting control modules or remote control), while simultaneously displaying the location on an electronic map.
What mechanisms does the device have for physical security protection?
Made to adhere to the strictest national safety regulations. It features device anti-tampering alarm (device replacement alarm) and alarm host removal-from-mounting-surface alarm.
What are the material standards for front-end mechanical components?
304/316 stainless steel wire is used. Probe rods and load-bearing rods are made of aluminum alloy.
Accessories use oxidation-resistant and corrosion-resistant engineering plastics.
What are the technical requirements for zone division and pole/rod distribution?
The length of a single zone should not exceed 40m. The spacing for intermediate support rods is recommended to be 3m to 5m. The number of corners/turns in each zone should not be greater than 2.
