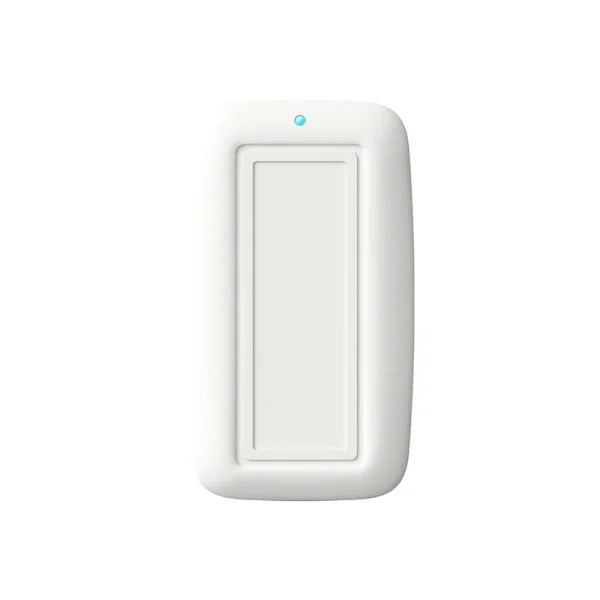

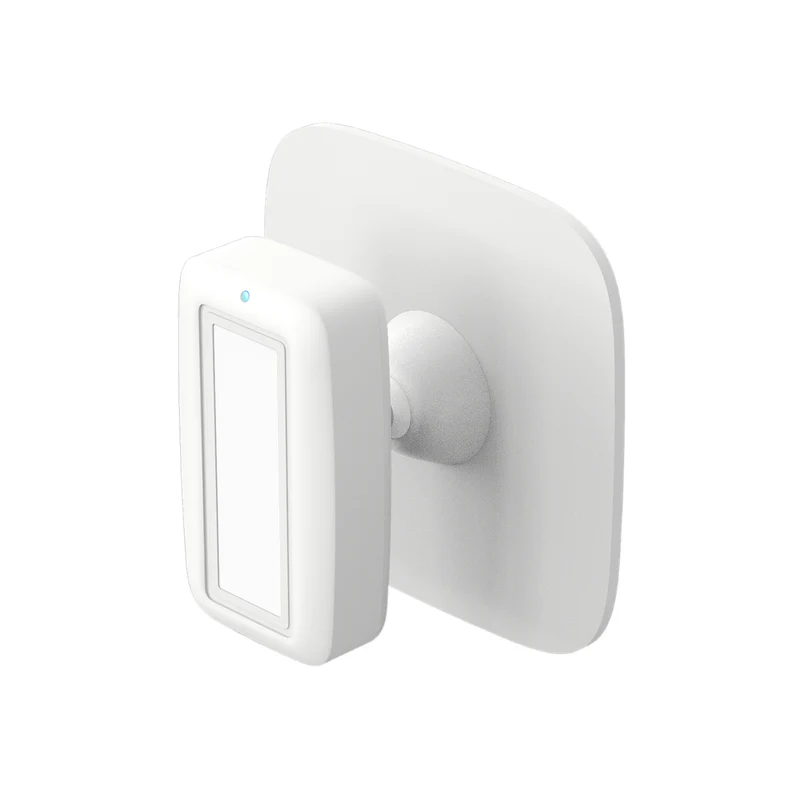

Indoor PIR Wall-Mounted Infrared Detector
- Plug-and-play design (wall-mounted): After wiring the base, the main body of the detector can be directly inserted, eliminating the need for disassembly and wiring.
- Precision Fresnel Lens Technology: Enhances energy reception efficiency for improved performance.
- Dual-Element Infrared Detection: Strengthens detector stability and reliability.
- Pet Immunity: Utilizes dynamic time division technology for superior anti-interference capability.
- Automatic Temperature Compensation: Minimizes “thermal drift” effects caused by temperature fluctuations in components.
Product Parameters
Dual-TechInfrared Smart Anti-Interference
| Operation Voltage
DC9~18V |
Operation Current
≤30mA |
| Operating Environment
Temperature -10°C to +50°C, Relative Humidity ≤95% |
Sensor
Dual-element passive pyroelectric sensor |
| Detection Distance
Diameter: 10M (ceiling-mounted), 8M (wall-mounted) |
Detection Angle
60° (ceiling-mounted), 20° (wall-mounted) |
| Alarm Output
NC/NO optional (500mA/30VDC) |
Tamper Output
Normally closed (50mA/24VDC) |
