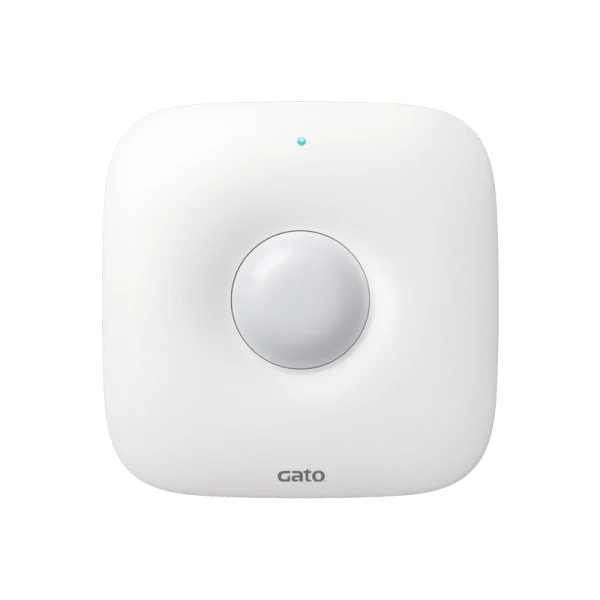

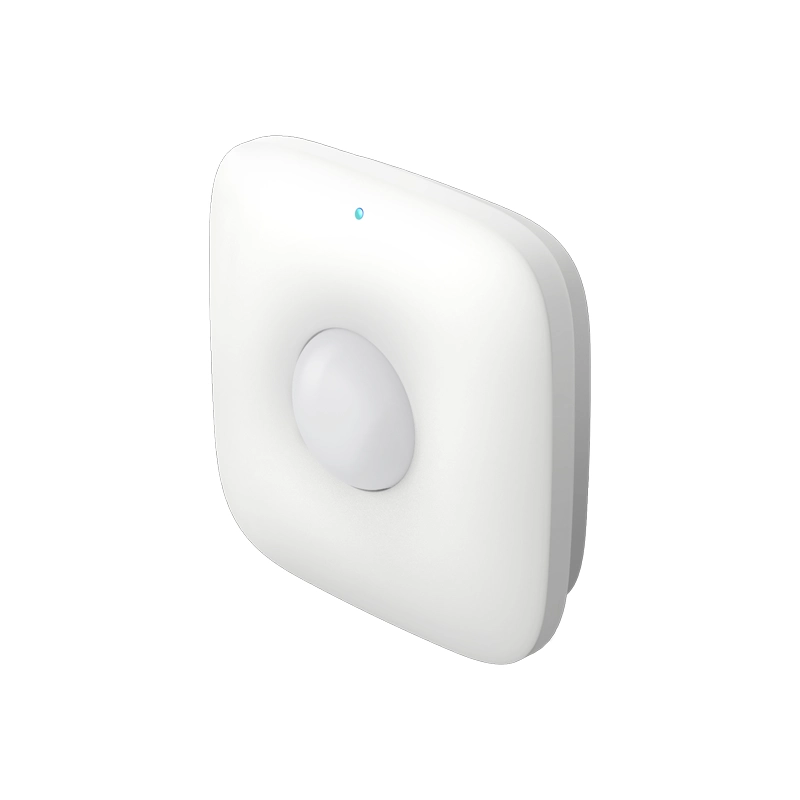

ID51C Ceiling-mounted Single Infrared Detector
- Enhanced Energy Reception with precision-engineered Fresnel lens for improved motion detection accuracy
- AI-Powered Dual Infrared Sensor delivers stable performance and minimizes false alarms from environmental interference
- Advanced Anti-Interference Technology with dynamic time-division and reliable pet-immune motion detection
- Smart Temperature Compensation automatically adjusts for thermal drift to ensure consistent sensor performance
Product Parameters
| Working Voltage | DC9~18V |
| Working Current | ≤30mA |
| Working Temperature | -10℃~+50℃ |
| Self-Test Time | 60S |
| Sensor | Dual Element Passive Pyroelectric Sensor |
| Anti-White Light Interference | >8000LUX |
| Installation Height | 2.4m-3.6m |
| Detection Distance | 10m Diameter |
| Detection Angle | 360° |
| Alarm Output | NC/NO Optional (500mA/30VDC) |
| Anti-Disassembly Output | Normal Closed (50mA/24VDC) |
