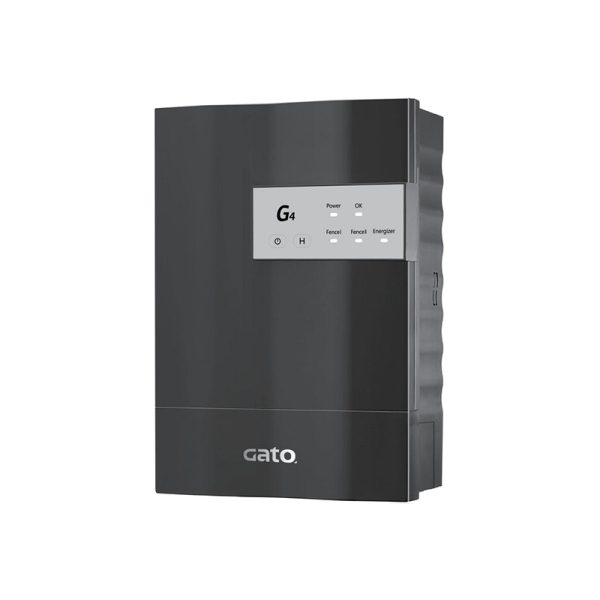

G4 Pulse Electric Fence
- Bl-Polar°: Achieves 5000/1000V high-voltage pulse on each line and point of the frontend fence.
- Local Settings: Configures local address, zone selection, anti-tamper alarm, and low battery alarm through DIP switch settings.
- Local Interface: Includes communication interface, power output, anti-tamper box, alarm outputs, battery, and DC power interfaces.
- Multiple Power Supply Methods: Supports AC and DC power options, with a DC12V battery for continuous operation during power outages.
- Remote Control: Allows remote control via software for power management, alarm adjustments, and voltage settings.
Product Parameters
G4 Pulse Electric Fence
| Main Power SupplyAC220V (Power Adapter), DC24V, AC24V | Backup Power SupplyDC12V Battery |
| Operating EnvironmentTemperature: -40℃~+80℃ relative humidity ≤95%. | Alarm Delay≤2s |
| PowerMaximum Power 15W | Communication InterfaceRS485 or network interface |
| Alarm Output Interface1 channel per guarding area, normally open, normally closed, public. | Power Output Interface1 DC12V 800mA output |
| Alarm Input1 Channel | Dimensions290*205*96mm |
