E3 DTS (Distributed Temperature Sensing)
- How can we safeguard critical infrastructure against thermal risks and enable early fire hazard detection?
- The E3 DTS uses Raman Scattering and Optical Time Domain Reflectometry (OTDR) to turn the entire optical fiber into a continuous temperature sensor, enabling long-distance, high-precision (±0.5m), and real-time localized temperature monitoring (±0.5°) along the fiber.
- With multi-level temperature alerts, intrinsic safety, and strong electromagnetic immunity, the E3 provides reliable, end-to-end thermal protection for high-risk applications like petrochemical plants, power storage, and transportation tunnels.
Customer Reviews
- The Gato E3 DTS was deployed in a critical power cable tunnel for continuous temperature monitoring and early fire warning.
Real-time Monitoring
Proactive Safety Alerts
Operational Continuity
- The E3 system provides real-time, meter-level temperature monitoring along the tunnel, detecting localized overheating points in cable joints, which cannot be detected by traditional point sensors. It triggers early alarms for preventive maintenance, preventing electrical fires and equipment damage, ensuring continuous operation and safety.
- The client was highly satisfied with the system’s precision, reliability, and the proactive safety management it enabled. They confirmed the E3 system has become an integral part of their facility’s risk prevention strategy.
Customer Case
- Fiber-optic DTS enables continuous, precise temperature monitoring and early fire risk prevention across tunnels, pipelines, tanks, warehouses, and data centers.
Trust Indicators
- Our products comply with multiple international standards such as CE, IS09001, and lS014001, and We have been widely applied in over 30 countries and regions across Europe,Asia, Africa.and the Middle East.
Product Functions
- High-precision, long-range DTS system delivers real-time temperature monitoring, flexible alarms, rapid scanning, and browser-based remote management.

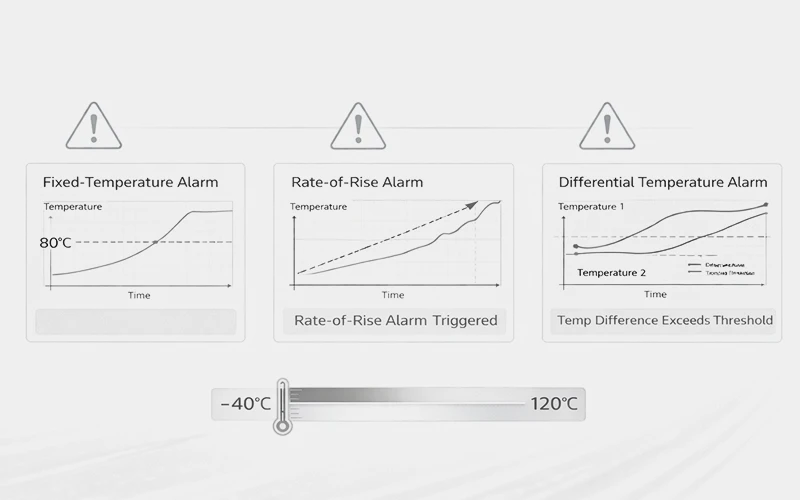

Comprehensive Temperature Alert Strategies
Supports fixed-temperature, rate-of-rise, and differential temperature alarms to meet diverse application requirements, with a detection range of 40 ℃ to 120 ℃.
High-precision Temperature & Location Detection
Delivers temperature accuracy within ±0.5 ℃ and spatial resolution of ±0.5 m, enabling pinpoint thermal monitoring.

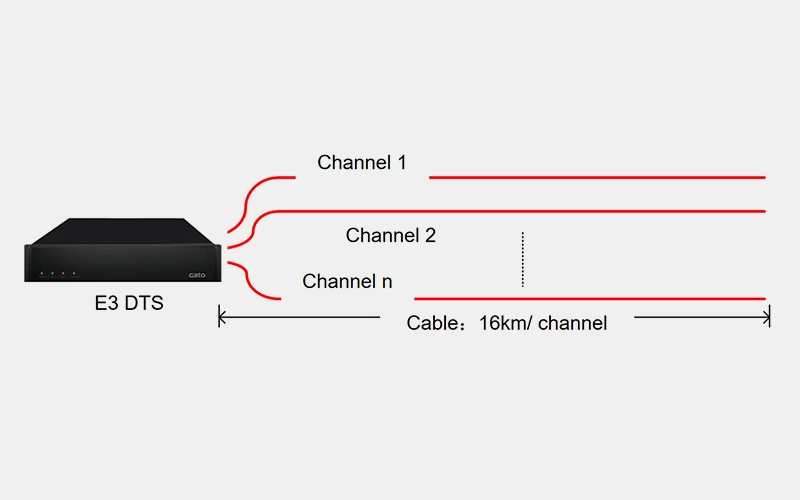

Long-range & Rapid Scanning
Covers up to 16 km per channel with a scanning cycle as fast as 1 second per channel, providing real time, continuous temperature profiling.

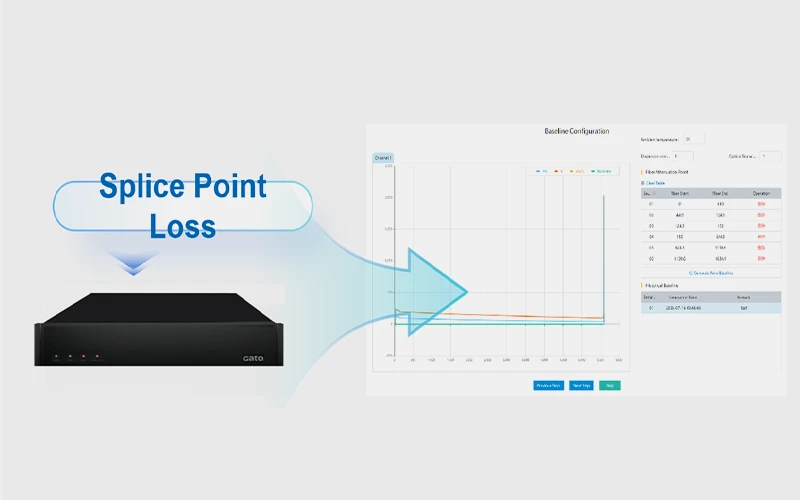

One-click Fiber Fault Location
Automatically identifies attenuation points and evaluates loss for quick troubleshooting.
Flexible Zone Configuration
Allows custom zone division based on site layout, with electronic map display for clear status and alarm visualization.

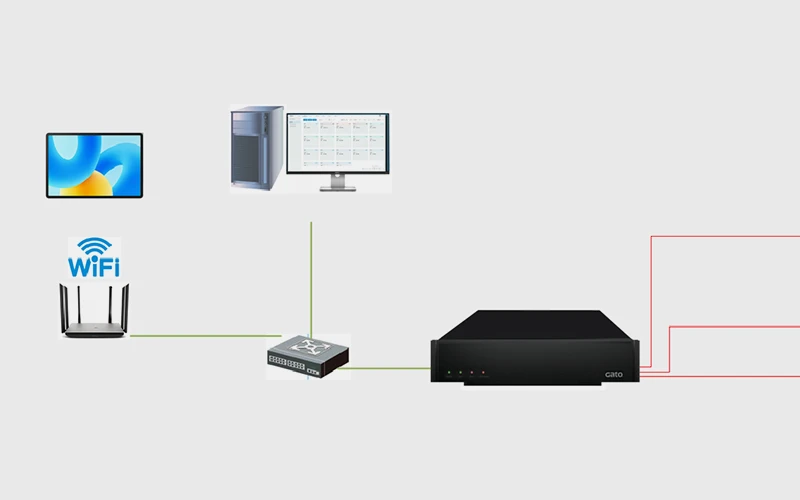

Browser Based Remote Monitoring
Built on a BS architecture; no client installation required—access and manage the system via any browser, supporting multi device connectivity.
Product Parameters
Electronic Map
Supports electronic map display of zone status and alarm locations
Long Detection Range
Up to 16km per channel
High Measurement Accuracy
Measurement accuracy up to ±0.5°C
Flexible Zone Configuration
Zones can be arbitrarily divided according to the on-site environment
Number of Channels
Supports 2, 4, or 8 channels
RS485 Interface
2 ports: 1 for relay module expansion, 1 reserved for Modbus communication
Network Communication Interface
2 ports, 100M/10M auto-adaptation
Relay Interface
4 ports, normally open (NO) and common (COM)
USB Interface
2 ports
Power Supply Interface
DC24V, with overcurrent protection
Measurement Range
-40°C to 120°C
Maximum Measurement Distance
16km per channel
Spatial Resolution
±0.5 meters
Measurement Accuracy
±0.5°C
Minimum Measurement Cycle
1 second per channel
