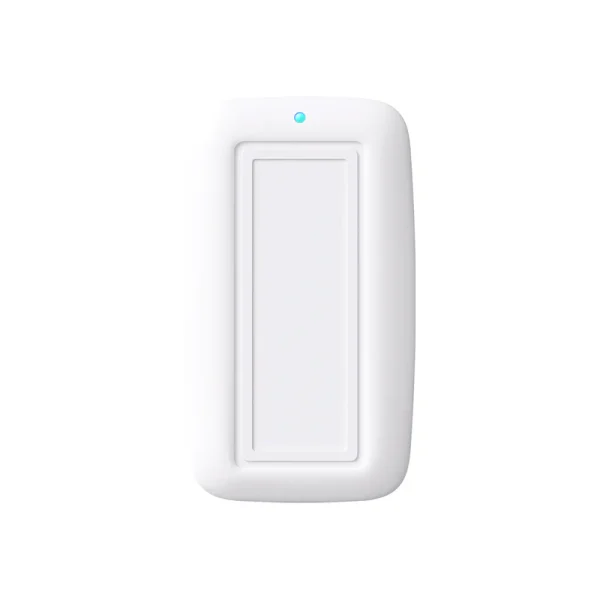

Directional PIR
- Direction Recognizable: Customizable settings for intrusion alarm direction; no alarm if entering the protected area from the opposite direction and returning within the specified time.
- Precision Fresnel Lens Technology: Improves energy reception efficiency.
- Dual-Element Infrared Detection: Enhances the stability of the detector.
- Pet Immunity: With dynamic time division technology, it has strong anti-interference capability.
- Automatic Temperature Compensation: Using temperature compensation to reduce the “thermal drift” phenomenon caused by temperature variations in components.
Product Parameters
Can Determine the Direction of Entry Into the Protected Area
| Operation VoltageDC9~18V | Operation Current≤30mA |
| Operating Temperature-10℃~+50℃ | Self-check Time60 seconds |
| SensorDual element passive pyroelectric sensor | Anti-white Light Interference>8000LUX |
| Installation Height1m-2.8m | Detection Distance8M |
| Detection Angle20° | Alarm OutputNC/NO optional (500mA/30VDC) |
| Tamper OutputNormally closed (50mA/24VDC) |
