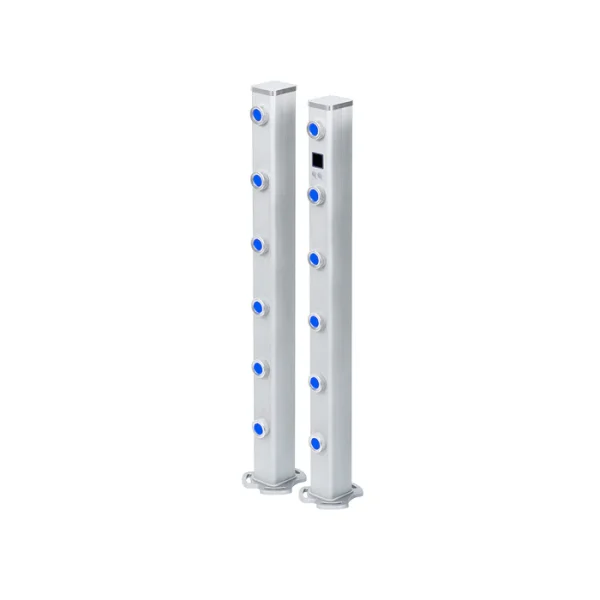

C3 Laser Beams
Working Principle:
- Transmission and reception of the laser beam.
- Transmitter adjusted to emit laser for proper reception by the receiver.
- Alarm triggered when the beam is blocked by an object.
Laser Characteristics:
- Beam: 2, 4 beams, beam spacing 15cm
- Detection distance: 50m, 100m, 200m
- Strong penetration ability and long distance.
- High anti-interference capability.
- Reliable operation in rain and fog, with no false positives.
Product Parameters
C3 Laser Beam
| Laser Wavelength808nm, visible light wavelength: 650nm (red light) | Beam2, 4 beams, beam spacing 15cm |
| Detection Distance50m, 100m, 200m | MaterialAluminum alloy |
| Angle AdjustmentHorizontal ±15°, vertical ±15° | Protection LevelIP66 |
| Alarm OutputNormally open, normally closed dry node output | Operating Temperature-40~80℃ |
| Working Humidity≤95% |
