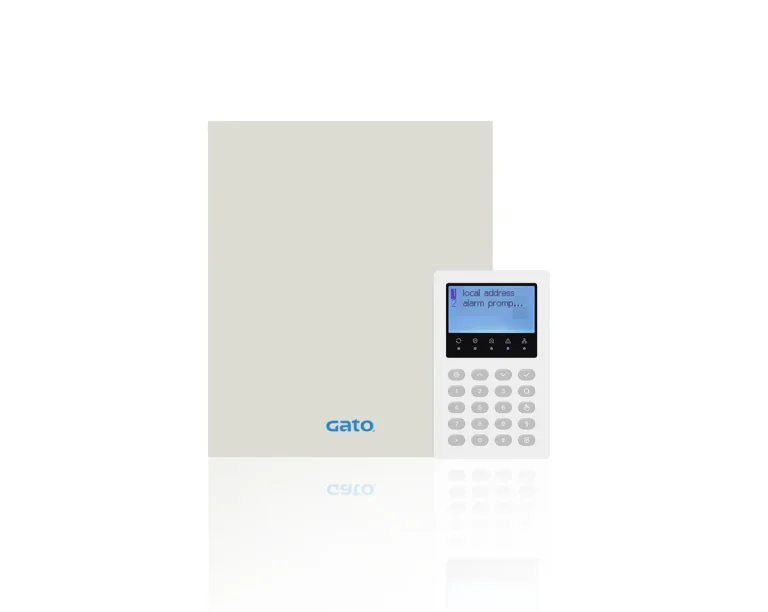

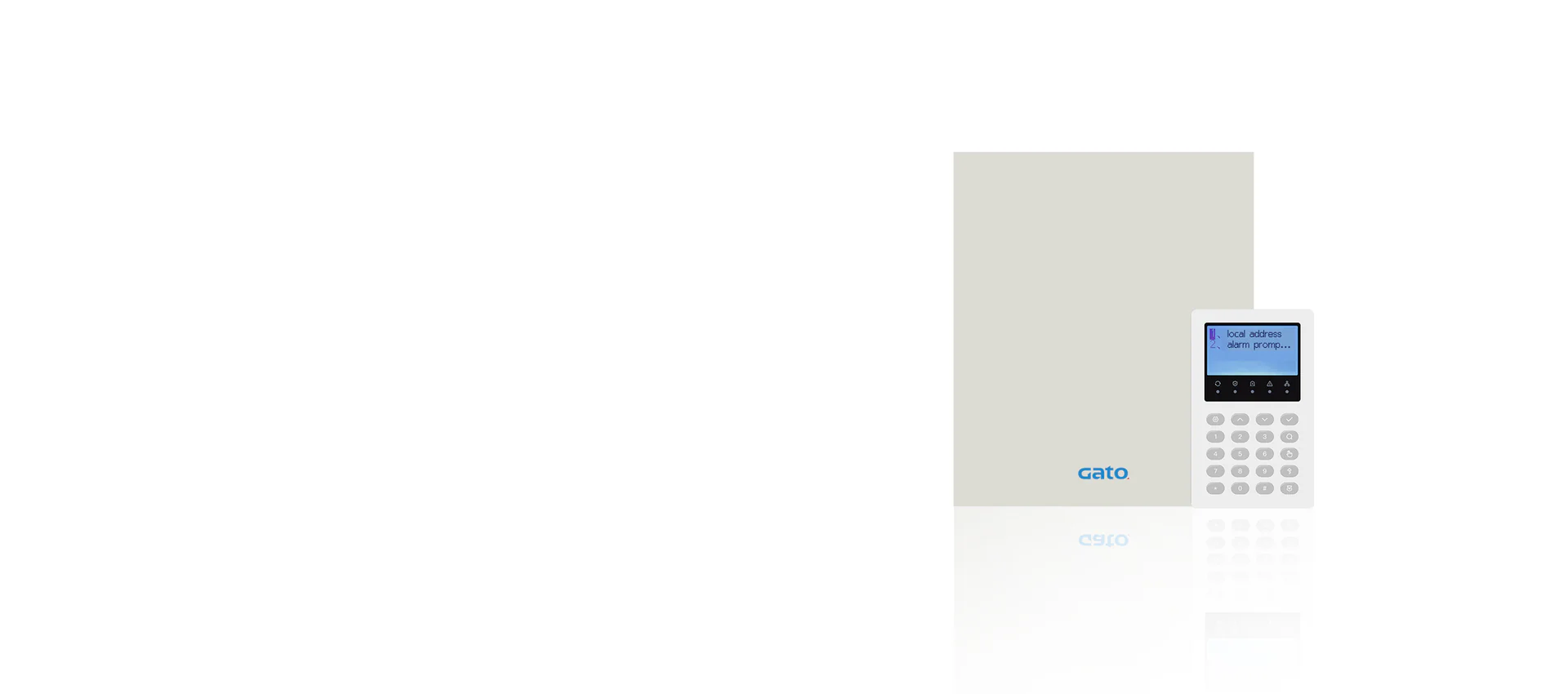

A7+AK023 alarm host
Address code free directly-connected perimeter alarm device
Product Overview
- By using BS architecture, Cato's alarm energizer and keyboard support a variety of communication interfaces, and have remote guarding area management functions. It can uniformly manage intrusion alarm systems such as electric fences, buried sensor cable energizer systems, and Fiber optic intrusion detection systems.
- The system also has convenient deployment/disalarm functions, bypass operation and remote parameter configuration functions, etc. The system also has convenient deployment/disalarm functions, bypass operation and remote parameter configuration functions, etc.
BS architecture
Centralized management
One-click registration

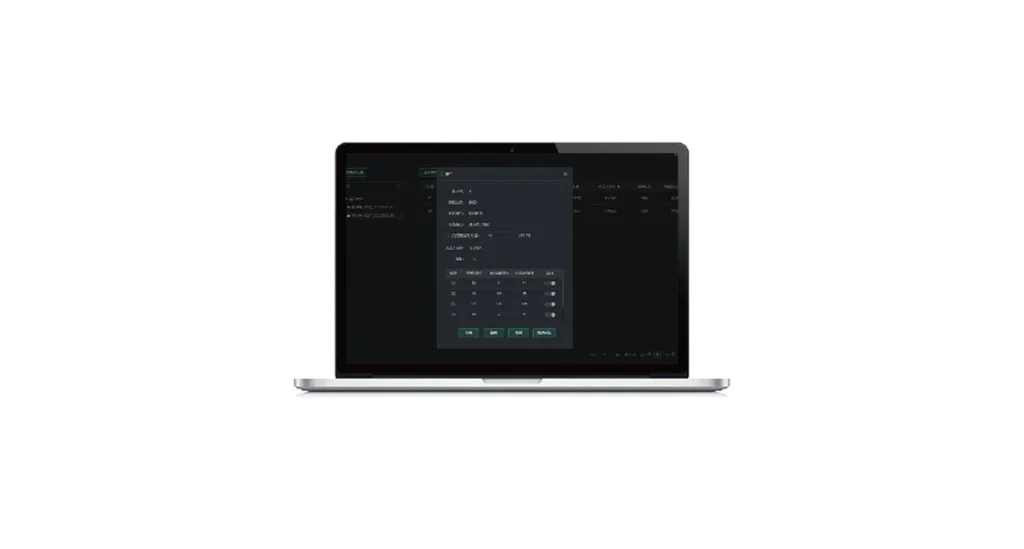

B/S architecture
It is compatible with different operating systems, and can be accessed, set up, viewed and upgraded through the browser.It is compatible with different operating systems, and can be accessed, set up, viewed and upgraded through the browser.
Super-large Storage Capacity
With the ability to store up to 5,000 alarm records and 5,000 operation logs, the system ensures comprehensive tracking of all security events and operational activities. This extensive storage capability allows for detailed historical data retention, facilitating efficient review and analysis of past incidents.
Centralized management
The system enables simultaneous access to both alarm and perimeter alarm systems, achieving unified management. This centralized approach streamlines operations, allowing security personnel to efficiently monitor and control multiple systems from a single interface, ensuring seamless coordination and response to any security events.
Various communication methods
it supports RS485 and indoor bus at the same time, providing users with a variety of choices, convenient construction and low cost.
One-click Registration
It has automatic registration function, which can realize one-click registration of all devices on the bus, thus saves the design time and operation process to the greatest extent.
Platform Characteristics
Multi-channel Support
Supports 1 indoor bus interface, 3 RS485 interface, 1 road network port, indoor bus interface supports access to 48 devices, communication distance of 1500 meters.
Multiple Operators
Support one administrator, one installer, one manufacturer, and no limit on the number of operators.
The System Deployment
The system also has convenient deployment/disalarm functions, bypass operation and remote parameter configuration functions, etc.
Convenient View and Access
One-click view of the machine parameters, defense area status and alarm records.
Product Parameters
A7 series control terminal and AK023 control keypad
Main power supply
AC220V
Beam
Backup power supply
Power
18W
Alarm output
DC12V 600mA
Auxiliary power output
DC12V 800mA
Communication interface
3 RS485 interfaces, 1 indoor bus interface, 1 100M network interface
Printer interface
1 USB interface local guarding area: 8-channel line system
Number of subsystems
8
Operation environment
temperature: -20℃~50℃
Working humidity
≤ 90%, non-condensation
Dimensions
304*244*80mm
